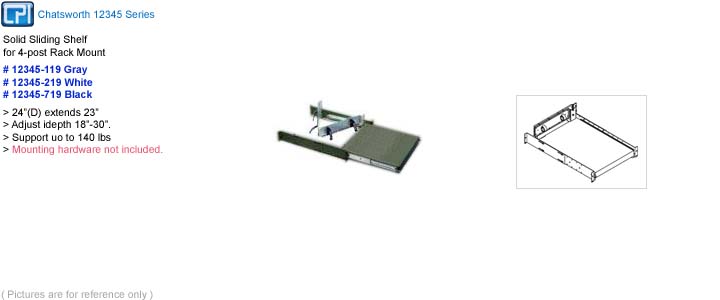

Chatsworth # 12345 Series
19” 4-post Rack Mount Solid Sliding Shelf
supports up to 140 lbs
SH4S-CPI-12345-xx

Link(s):

Product Family
> # 12345-719 - Black
> # 12345-219 - Computer White
> # 12345-119 - Gray

Features:
These specially designed shelves are suitable for applications where there is a need to access installed equipment for maintenance, upgrading, cleaning, etc. The preassembled cable management arm prevents tangles, twists and damage from cuts, kinks, etc. during shelf extension or retraction as well as maintaining proper bend radius of cable. Shelves mount to the four vertical mounting rails. 24” depth to provide clearance for cables, ventilation, power strips, etc. Shelves have adjustable mounting depths of 18” to 30”.

Specifications:
> Extends 23”
> 24” depth
> Solid (non-vented) Made of strong, lightweight aluminum
> Shelf locks in closed or fully open position, providing stability
> Supports up to 140 lb
> Ships fully assembled
> Installs using 8 #12-24 screws (not included)
> Adjustable mounting depths of 18” to 30”
> Shipping weight: 16 lbs
