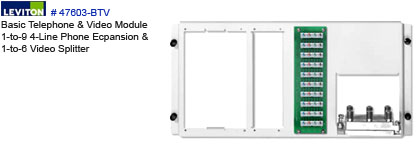

Basic Telephone & Video Module
Leviton # 47603-BTV for
Structured Media Center
1-to-9 4-Line Phone Expansion &
1-to-6 Video Splitter

PN-SMC-LV-xxx

Link(s):

Application

Leviton's Basic Telephone and Video Panel combines a 1x9 Bridged Telephone Board and a 6-way 2 GHz Video Splitter in a dedicated plastic bracket for essential telephone and video distribution. It handles up to four telephone lines through to nine telephone connections, making it suitable for phone, fax or modem. The panel features video output for up to six video connections.

Standards Compliance

Meets all applicable standards: cULus Listed; TIA/EIA-568A and FCC Part 68 compliant.

Physical Specifications

  • Bracket: ABS plastic, white.
  • 1x9 Bridged Telephone Board: Printed circuit board with 10 bridged 4-pair 110-Type IDC connectors.
  • 6-way 2 GHz Video Splitter: Die-cast housing and printed circuit board

Materials:

  • Construction
  • Dimensions:
    • Bracket: 6.13"H x 13.30"W x 2.28" D
    • 1x9 Bridged Telephone Board: 2.24"H x 6.57"W x 1.82"D
    • 6-way 2 GHz Video Splitter: 3.0"H x 6.58"W x 1.4"D
  • Insertion Loss: 11.0 dB - 14dB
  • Return Loss: 11.5 dB - 23.5 dB
  • Isolation: 35.0 dB - 39.5 dB
Design Considerations
  • Fit easily into any Leviton Structured Media™ enclosure, or use as a stand-alone unit.
  • Determine outlet locations and carefully plan cable routing to ensure the selected unit satisfies requirements. Expansion boards available separately.
  • Install 75 Ohm termination caps on unused outputs of 6-way 2 GHz Video Splitter to reduce signal distortion or "ghosting".
  • Use Video Amplifier (PN# 48210-VA) for increased signal strength.

Part Numbers

  • 47603-BTV - Basic Telephone and Video Unit
  • 47604-BTV - In kit with SMC-100 Insert and Cover
  • 47605-BTV - In kit with SMC-140 and Cover
