Brand Features
Leviton’s
Pre-configured
Structured
Cabling Panels
combine some of
Leviton’s most
popular voice,
data and radio
frequency
modules to
create an
economical, one
stop home media
distribution
point. Some
modules are
available in
expansion styles
to fill unused
panel slots as
shown below.
Choose the
pre-configured
combination that
best meets your
needs and then
enhance it with
expansion boards
or stand alone
modules.
Item Description

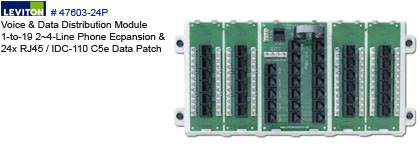

24-Port
Structured Media
Panel
Technical Information
- Dimensional Data
- Height: 6.13 Inch
- Width: 13.3 Inch
- Depth: 2.01 Inch
- Material Specifications
- Bracket Material: ABS Plastic
- Mechanical Specifications
- Telephone Line Distribution: 19 8P8C 2-4-Line Dist, 1 Test, 1 Aux, 1 110-IDC
- Cat 5e Voice Data: 24 Catagory 5e ports and 24 110-IDC Conn.
- Product Features
- Type: Full Size Pre-Configured Cabling Panel
- Description: 24-Port Structured Media
- Cat 5e Voice Data Module: 4
- Telephone Line Distribution Module: 1
- Standards and Certifications: CULUS/FCC/TIA/EIA
- Warranty: 2 Year Limited
- Bracket Material: ABS Plastic
- Standards and Certifications
- CULUS Listed: Yes
- TIA/EIA: 568A
- FCC Rated: Part 68 Compliant
- Structured Media Components
- Telephone Line Distribution Module: 1
- Cat 5e Voice Data Module: 4
Features and Benefits
- Provides two to four lines of service to up to 19 connections when combined with other modules.
- Routes voice and data service to 24 remote locations via 3 Category 5e Video and data Boards.
- Panel includes a plastic bracket, Telephone Line Distribution Module, 4 Category 5e Voice & Data Boards and 24 8-Conductor Flat telephone patch cords.
- Fits into any Leviton Structured Media enclosure or used as a stand-alone unit.
- Offers multi-line systems and expanded home networking.
