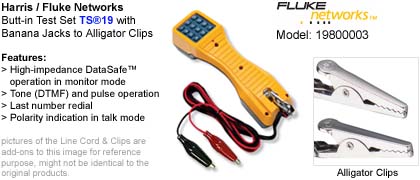

Butt-in Telephone Test Set
Harris Fluke Networks 19800-003 (TS-19 19800003)
TS19 Series with Banana Jacks to Alligator Clips

TS®19 Test Set
Specifically designed for in-house telecom technicians, the TS®19 Test Set combines all the basic test set features at a value price – plus it provides DataSafe™ protection to prevent accidental disruption of data service in monitor mode.

> High-impedance DataSafe™ operation in monitor mode
> Tone (DTMF) and pulse operation
> Last number redial
> Polarity indication in talk mode

The Fluke Networks TS19 Test Set combines all the essential test set features at a value price. This test set was specifically designed for in-house telecom technicians. Its high-impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines. Features such as tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.

Specifications (TS-19 Series):

Loop Limit: 2.4 kΩ maximum at 48 VDC (nominal 15 mA minimum loopcurrent)
> DC Resistance (Talk Mode): 150 Ω typical at 80 mA current
> AC Impedance (Monitor Mode):
   Low impedance (Ring position) 600 Ω at 1 KHz typical
   High impedance (HI Z position) 100 kΩ minimum at 1 KHz
> Rotary Dial Output: 10 pps .5 pps
> Pulsing Rate: 60 % ± 2 %
> Percent Break: 800 ms typical
> Interdigit Interval Leakage During Break: > 50 kΩ
> DTMF Output: ±1 % maximum
> Tone Frequency Error Level per Tone Pair: dBm maximum, - dBm minimum
> High versus Low Tone Difference: 4 dB maximum


Length: 8.75 in (22.2 cm)
> Width: 2.375 in (6.03 cm)
> Height: 3.375 in (8.57 cm)
> Weight: 10.8 oz (.307 kg) maximum

> Temperature:
   Operating: -5 °C to °C
   Storage: -40 °C to °C
> Drop: 1 meter, 4 times
> Altitude: To 3,000 meters (10,000 feet) maximum
> Relative Humidity: 10 %to 80 % (non-condensing)
> Regulatory Standards Used:
   47 CFR Part 15, Subpart B
   ICES-003 Issue 3
   AS/NZS 3548
   EMC Directive 89/336/EEC, EN 55022:98, EN 61326:97, A1:98 Annex C, EN 61000-4-2, EN 61000-4-3
   LV Directive 73/23/EEC, EN 610010.1 (1993)

Certifications and Compliance
> Conformité Européenne. Conforms to relevant European Union directives.
> CAN/CSA-C22.2 No. 60950-1-03
> CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1

Specifications subject to change without notice. Legal requirements may exist regarding permission to connect equipment to a Telecom network operated by a public network operator. www.flukenetworks.com
