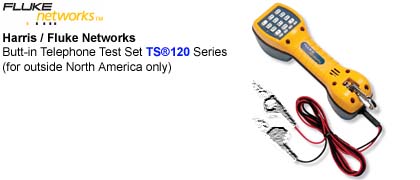

Butt-in Telephone Test Set
Harris Fluke Networks TS120 Series (TS®120)
(for outside North America only)

Butt-in Telephone Test Set
Harris Fluke Networks TS120 Series (TS®120)
(for outside North America only)


Options: (not all items are available; subject to inventory)
1. TSTR-BUTT-TS12001005 - 12001005 TS120 Test Set with alligator clips only (67/33 break/make ratio)

TS®120 Test Set
The durable TS®120 Test Set provides superior rugged quality at an affordable price. In addition to its DropSafe™ reliability and RainSafe™ protection, the TS120 offers DataSafe™ data protection in monitor mode.

> High-impedance monitor mode
> Tone and pulse operation
> Last number redial in tone and pulse modes
> RainSafe™ test set for use in extreme weather conditions
> Hook flash button
> Fully functional with either line polarity
> Audible electronic ringer for call backs
> High current and over voltage protection
> High-impact polycarbonate case
> Field replaceable spring-loaded belt clip
> Hearing aid compatible receiver
> Transmitter mute switch
> Talk and monitor modes
> Ergonomic design
> Lightweight unit is easily transported

Recognized as the industry standard for basic test sets, the TS120 Test Set provides superior quality at an affordable price. With its high-impedance monitor for DataSafe™ operation, technicians can clip onto a line in monitor mode without disrupting existing traffic. Fluke Networks’
unsurpassed RainSafe™ protection standards and DropSafe™ durability assure the test set will keep working even in the toughest environments. Solid weatherproofing provides enhanced resistance to severe weather conditions.

Specifications (TS-30 Series):

> Return Loss: >14 dB (ref 600 Ω)
> Line Current Range: 15 mA to 120 mA
> Resistance to Continuous Current (Talk Mode): 275 Ω typical at 20 mA
> Monitor Mode Impedance: >120,000 Ω 300 Hz to 3400 Hz

Pulse Dial Output

> Pulsing Rate: 10 pps
> Open/Close Ratio: 60/40
> Inter-digit Interval: 800 ms %, -10%
> Resistance During Pulse Open: > 200,000 Ω
> Protection Against Alternating Current Overvoltage: The TS120 survives up to 250 Vrms across its test leads.
> Peak Acoustic Output of the Receiver: <120 dBspl
> DTMF Output Tone Frequencies Tone Frequency Error : per ITU-T Q.23 ±1.5% Maximum

Tone Level
> High Group Low Group: -4 dBm (into 600 Ω) -6 dBm (into 600 Ω)
> High vs Low Tone Difference: 2dB +1db

Last Number Redial (Tone/Pulse)
> Memory Capacity Memory Retention: 23 digits 8-minutes nominal
> Flash Duration: 600 ms ±100 ms
> Ringer Loudness: > 70 dBA at 1 meter
> Ringer Equivalent (REN): 0.14

> Measurements: 10 in x 2.83 in x 3.34 in (25.5 cm x 7.2 cm x 8.5 cm)
> Weight: 16.8 ounces (0.476 kg)

> Temperature:
   Operating: -4 °F to +140 °F (-20°C to +60°C)
   Storage: -40 °F to +151 °F (-40°C to +66°C)
> Relative Humidity: 5% to 95%

> Telecom Electrical: TNV-3
> Safety Classification: IP54

Regulatory Standards Used

> 47 CFR Part 15, Subpart B
> ICES-003 Issue 3
> AS/NZS 3548
> EMC Directive 89/336/EEC, EN 55022:98, EN 61326:97, A1:98 Annex C, EN 61000-4-2, EN 61000-4-3
> LV Directive 73/23/EEC, EN 610010.1 (1993)

Certifications and Compliance

> Conformité Européenne. Conforms to relevant European Union directives.
> CAN/CSA-C22.2 No. 60950-1-03 CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2
> No. 1010.1B-97, UL/ANSI 3111-1

Specifications subject to change without notice. Legal requirements may exist regarding permission to connect equipment to a Telecom network operated by a public network operator. www.flukenetworks.com
