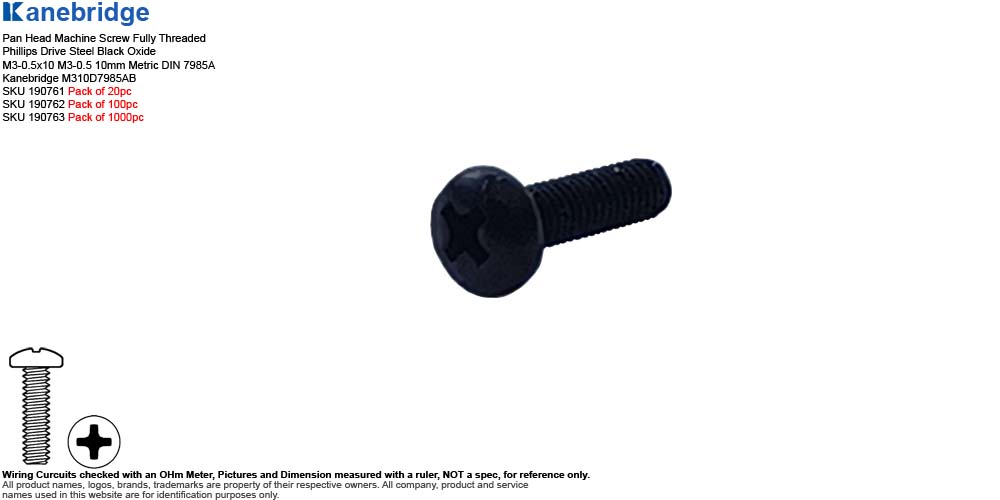

Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Oxide M3-0.5x10 M3-0.5 10mm Metric DIN 7985A Kanebridge M310D7985AB

Pan Head Machine Screw Fully Threaded
Phillips Drive Steel Black Oxide M3-0.5x10 M3-0.5 10mm Metric DIN 7985A
Kanebridge M310D7985AB
SKU 190761 Pack of 20pc
SKU 190762 Pack of 100pc
SKU 190763 Pack of 1000pc
SC-PPm-SB-xxx

Screw Head Dimension - Machine Screw Metric Pan Head Phillips Drive (K.B. Corp.)
Screw Thread Dimension -Metric Mechanical and Performance Requirements - Machine Screws / Steel, Stainless, Aluminum (K.B. Crop.)

Features:

Numbers per Unit:
SKU 190761 Pack of 20pc
SKU 190762 Pack of 100pc
SKU 190763 Pack of 1000pc
Description: Pan Head Machine Screw Fully Threaded Phillips Drive Steel Black Oxide M3-0.5x10 M3-0.5 10mm Metric DIN 7985A Kanebridge M310D7985AB
Manufacturer: Not Specified
Brand or Distributor: Kanebridge

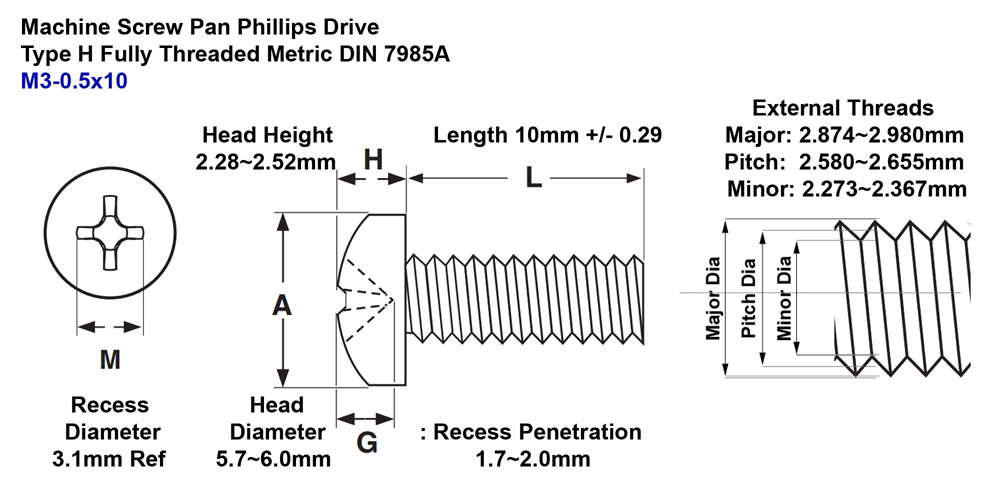

Brief Spec.:
- System: Metric DIN 7985A
- Type: Machine Screw
- Head: Pan
  - Head Height: 2.28mm ~ 2.52mm
  - Head Diameter: 5.7mm ~ 6.0mm
  - Recess Diameter: 3.1mm (Ref.)
  - Recess Penetration: 1.7mm ~ 2.0mm
- Drive:
  - Drive Type: Phillips
  - Driver Size: 1
- Thread:
  - M3-0.5 Fully Threaded
  - Thread Length: 10mm +/- 0.29
  - Major Diameter: 2.874mm ~ 2.980mm
  - Pitch Diameter: 2.580mm ~ 2.655mm
  - Minor Diameter: 2.273mm ~ 2.367mm
- Material: Steel
- Finish: Black Oxide
Weight:
- 0.6 oz per 20pc (Estimated Shipping Weight: 4 oz )
- 2.9 oz per 100pc (Estimated Shipping Weight: 6 oz )
- 28.8 oz per 1000pc (Estimated Shipping Weight: 2 lb)
Packaging: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
For use with or pulled from: (for reference only)
- Perfect for assembling and securing parts in industrial machinery. Used in securing parts within electronic devices and appliances.
- Widely used for some laptop computers.
Information for reference only, might changed without prior notice.

Metric Machine Screws DIN 7985A
M3.5-0.6x10 (Thread Length 6mm)
Pan Phillips (Type H) Coarse / Fully Threaded
Class 4.8 Steel Black Oxide
SC-PPm-xxx

Features:

Manufacturer: Not Specified
Distributor: Kanebridge
General Spec.:
- Use: Machine Screw
- System: Metric
- Standard: DIN 7985A
- Head: Pan
- Drive: Phillips
- Driver Size: 2
- Material: Class 4.8 Steel
- Finish: Black Oxide
Head:
- Head Height: 2.58mm ~ 2.82mm
- Head Diameter: 6.64mm ~ 7.0mm
- Recess Diameter: 4.2mm (Ref.)
- Recess Penetration: 1.74mm ~ 2.24mm
Length:
- Thread Length: 10mm +/- 0.29
Thread:
- M3.5-0.6 Fully Threaded
- Major Diameter: N/A
- Pitch Diameter: N/A
- Minor Diameter: N/A
Condition: New, bulk, seller repackaged.
Weight: 3.9 oz for 100 pcs (Estimated Shipping Weight 6 oz)
Packaging: Non-retail packaging, in unprinted box or plastic bag.
Information for reference only, might changed without prior notice.
