For reference only, photos / specs may not reflect actual content.

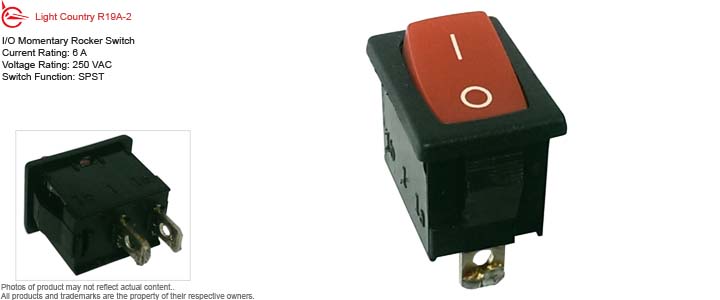

I/O Momentary Rocker Switch
Light Country R19A-2
6A, 250VAC SPST (Single Pole Single Throw)
PSW-Rm-xxx

Features:

  • Manufacturer: Light Country Co., Ltd.

  • Part Number: Light Country R19A-2

  • Current Rating: 6A

  • Voltage Rating: 250VAC

  • Switch Function: SPST (Single Pole Single Throw)

  • Design: I/O Momentary Rocker Switch

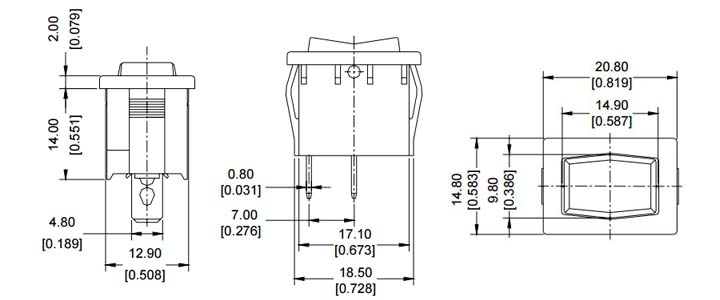

Dimension:

Specification:

  • Electrical rating:UL:6A 250V/10A 250V/15A 125V VED:6A 250V

  • Actuating force:3~8N(dependent on different switch functions)

  • Mechanical life endurance:30000 cycles

  • Flammability:UL94V-2

  • Electrical life endurance:10000 cycles

  • Material of housing:PA66

  • Material of rocker: PC/PA66

  • Contacts: Silver alloy

  • Dielectric strength:>1500V/minutes

  • Terminal: Brass (Silver Plated)

  • Ambient temperature:0ºC~+85ºC

  • Temperature rise at the terminal:Max.30ºC(UL1054)

  • Storage temperature:-30ºC~+85ºC

  • Solder ability of terminal: Max 350ºC,3s(no pressure may be placed on the terminals when soldering by hands)

  • Atmospheric humidity:Max.85%
