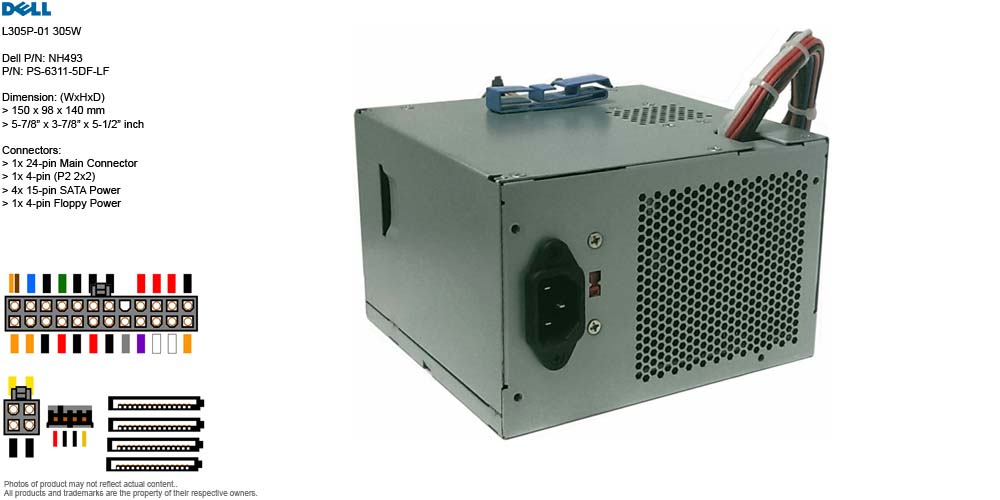

Dell Power
Supply L305P-01
305W Replacement Power
Supply
PS-DELL-xxx
Features:
- Brand Name: Dell
-
Model: L305P-01
- Dell PN.: NH493
- P/N: PS-6311-5DF-LF
- Form Factor: ATX Power
Supply
- Max Output: 305W
- Dimension:
( WxHxD):
- 150 x 98 x 140 mm
- 5-7/8” x 3-7/8” x 5-1/2” inch
- Connectors:
- 1x 24-pin Main Connector
- 1x 4-pin P2 (2x2)
- 4x 15-pin SATA Power
- 1x 4-pin Floppy Power
-
AC Input:
- 110~120V / 9.0A
- 200~240V / 4.5A
- Frequency:
50~60Hz
- DC Output:
-
+5V 22.0A Max
-
-12V 1.0A Max
-
+5VFP 4.0A
Max
-
+3.3V 17.0A Max
-
+12VA 18.0A Max
-
+12VB 18.0A Max
-
Max. Combined
Power on +5V and +3.3V output
is 150W
-
Max.
Combined Power on +12VA and +12VB output
is 264W
Condition: Used,
pulled from working Dell Optiplex
745.
Package: Non-retail
packaging, in unprinted box or plastic bag.
|
