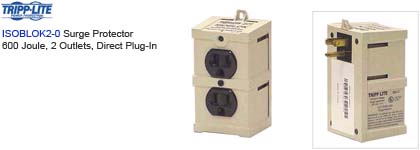

Surge Protector, Surge Suppressor, Tripp Lite ISOBLOK2-0
Direct plug-in surge, spike and line noise protection
600 Joule Rating, 2 Outlets, Direct Plug-in, Diagnostic LED
PSG-TP-02-ISBLOK2-0

Description

Tripp Lite's Isobar ISOBLOK2-0 Surge Suppressor is ideal for protecting audio/visual devices and printers. This premium direct plug-in surge suppressor features 2 outlets, diagnostic LED, and 600 joules of energy absorption.

.Key Buying Points

  • 2 outlets; direct plug-in

  • Surge energy absorption: 600 joules; 48,000 amps

  • Diagnostic LED indicates protection present

  • EMI/RFI noise filtering

Typical Applications
Printers, audio/visual devices, appliances, personal computers, point-of-sale terminals, and more.

Package Includes

  • ISOBLOK2-0 Surge Suppressor

  • Warranty Information

  • Instruction manual

Complete Specifications

SYSTEM OVERVIEW
System overview:
ISOBLOK2-0 direct plug-in surge and noise suppressor prevents equipment damage and performance problems resulting from damaging transient surges and line noise. Active filter network maintains noise-free output with zero reaction / response time. Mounting bracket and included screw securely mounts the suppressor to a standard duplex wall socket. 2 AC outlets, 600 joules AC protection level, 3 diagnostic LEDs.
Voltage compatibility:
120 VAC
Frequency compatibility:
50/60 Hz
OUTPUT
Output volt amp capacity (amps):
15
Output watt capacity (watts):
1800
Outlet quantity / type:
2 NEMA 5-15R output receptacles
INPUT
Input connection type:
NEMA 5-15P input plug
Recommended electrical service:
120V 15A
LEDS ALARMS & SWITCHES
Diagnostic LEDs:
PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
AC SURGE / NOISE SUPPRESSION
Protection modes:
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
AC suppression joule rating:
600 joules
Clamping voltage (RMS):
140V
AC suppression response time:
NM = 0 ns. CM = <1 ns
AC suppression surge current rating:
48,000 amps
AC suppression components used:
Metal oxide varistors, toroidal balanced chokes and VHF capacitors
Safe thermal fusing:
Prevents unsafe conditions during extreme extended overvoltages and catastrophic occurences
EMI / RFI filtering:
40-80 dB
Immunity:
Conforms to IEE 587 / ANSI C62.41
PHYSICAL
Unit Dimensions (HWD/in):
4 x 2.5 x 2.5
Unit Dimensions (HWD/cm):
10.2 x 6.4 x 6.4
Material of construction:
Plastic
Form factors supported:
Direct plug-in format with retaining bracket supports wall mounting directly to a standard AC wall socket
Housing color:
Gray
Receptacle color:
Black
CERTIFICATIONS
UL1449 1998 Rev. (AC Suppression):
UL1449
UL1283 (EMI Filter):
UL1283
cUL / CSA (Canada):
cUL
Approvals:
Exceeds IEEE 587 category A&B specifications

Specifications are subject to change without notice.
