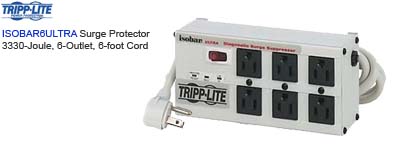

Surge Protector, Surge
Suppressor, Tripp Lite ISOBAR6ultra
Premium
surge, spike and line noise protection
3330 Joule Rating, 6 Outlets, 6-foot Cord,
All Metal Housing, Isolated Filter Banks
PSG-TP-06-ISB4Ultra
Links:
Features:
6-outlet, 6-ft cord, 3330 joule, All metal housing Isobar Surge
Suppressor - Premium surge, spike and line noise protection
-
6 outlets/6-ft.
cord
-
3330 joule rating
-
All metal housing
with LEDs
-
Isolated filter
banks
-
$50,000
Ultimate
Lifetime Insurance (USA,
Puerto Rico & Canada only)
Overview
For
more than 20 years, America's
leading companies have trusted Tripp
Lite's Isobar Premium surge and
noise suppressors to protect
sensitive computer, networking and
telecom equipment. With more than 14
million satisfied customers, the
Isobar remains the world's number
one selling premium surge
suppressor. Loaded with a generous
combination of high quality
components, near indestructible
all-metal case and unique noise
filtration system, the Isobar offers
the highest level of protection
attainable in a multi-outlet strip.
Robust surge suppression circuits
with sine-wave tracking offer
extreme levels of protection against
the heaviest surge conditions
exceeding IEEE 587 category A & B
specifications and reducing 6,000V
test surges to harmless levels under
35 volts. Isobar's unique protection
system combines large toroidal
chokes, ferrite rod-core inductors,
HF/VHF capacitors and multiple
layers of metal oxide varistors into
exclusive isolated filter banks that
remove EMI/RFI interference, even
noise generated by other pieces of
connected equipment. ISOBAR6ULTRA
offers 6 outlets arranged in three
filter banks to prevent system
crashes, reboots and performance
problems common as noisy system
peripherals are powered off and on.
Surge suppression rated at 3330
joules/97,000 amps offers
network-grade protection. Widely
spaced NEMA 5-15 outlets accommodate
up to 4 large transformer plugs
without blocking outlets. Diagnostic
LEDs confirm power availability,
line fault and protection status.
Includes 6 foot AC line cord with
space-saving angled input plug,
keyhole mounting tabs and a set of 4
child safety covers. Lifetime
warranty with $50,000 Ultimate
Lifetime connected equipment
insurance (USA & Canada Only).
PLUG/OUTLETS: Input: NEMA
5-15P/Output: 6 NEMA5-15R/6-ft. AC
line cord
ELECTRICAL: 120V AC, 50/60Hz
(Requires NEMA 5-15R wall
receptacle)
SUPPRESSION: AC: 140V RMS
Clamping/3330 joules/97,000 amps
FORMAT:
Corded all-metal strip with
transformer spaced outlets
Key
Features
-
Tripp
Lite's ISOBAR is the world's number one
selling premium suppressor series with
more than 14 million satisfied customers
and a safety-tested history of 20+ years
-
Robust
surge suppression with sine-wave
tracking protects against the heaviest
of surge conditions, exceeding IEEE
category A&B specifications and reducing
6,000V test surges to harmless levels
less than 35 volts.
-
Multi-component suppression circuits
combine torroidal chokes, ferrite
rod-core inductors, HF/VHF capacitors
and multiple layers of metal oxide
varistors into exclusive isolated filter
banks that remove EMI/RFI interference,
even noise from other pieces of
connected equipment.
-
6 outlets
arranged in three filter banks prevent
system crashes, reboots and performance
problems common as noisy peripherals are
powered off and on.
-
Network
grade surge suppression rated at 3330
joules/97,000 amps
-
Widely
spaced outlets accommodate up to 4 large
transformer plugs without blocking
outlets
-
3 LED
indicators confirm suppressor operation
and site wiring status, plus warning of
suppressor or electrical fault
conditions
-
Lighted
power switch confirms power on/off
status
-
6 foot AC
line cord with space-saving angled input
plug6 foot AC line cord with
space-saving angled input plug
-
Keyhole
mounting tabs allow permanent
installation
-
Set of 4
outlet covers safely seal off unused
outlets
-
120VAC,
50/60Hz electrical compatibility
-
$50,000
Ultimate Lifetime Insurance (USA &
Canada Only)
-
Lifetime
product warranty
-
UL1449 3rd
Edition listed - surge suppression (330V
let-through), UL1283 listed - EMI
protection, UL1363 listed - power tap,
cUL approved to Canadian standards
Typical Applications
Ideal
for premium protection of personal
computers with peripherals, network
and CAD/CAM/CAE workstations,
internetworking accessories,
telecommunications systems, point of
sale equipment, audio/video and home
theater systems in any home, office
or industrial application.
Package Includes
-
ISOBAR6ULTRA premium surge suppressor
-
Set of 4
outlet safety covers
-
Instruction
manual with warranty information
Complete Specifications:
OVERVIEW |
Intended Application |
Home/Office, Computer
Networks |
OUTPUT |
Frequency compatibility |
50 / 60 Hz |
Output watts |
1440 |
Output volt amp capacity
(amps) |
12 |
Outlet quantity / type |
6 NEMA 5-15R |
Transformer accommodation |
Supports up to 4 large
transformer plug accessories without covering remaining
outlets |
INPUT |
Recommended Electrical
Service |
120V (110-125V) |
Input connection type |
NEMA 5-15P input plug |
Input plug features |
Space-saving right angle
input plug |
Input cord length (ft.) |
6 |
Voltage compatibility (VAC) |
120 |
LEDS ALARMS & SWITCHES |
Switches |
Two position red
illuminated on/off power switch |
Diagnostic LEDs |
PROTECTION PRESENT (green),
LINE FAULT (red) and LINE OK (green) |
SURGE / NOISE SUPPRESSION |
AC suppression joule rating |
3330 |
AC suppression response
time |
NM = 0 ns. CM = <1 ns |
Protection modes |
Includes full normal mode
(H-N) and common mode (N-G / H-G) line surge suppression |
Clamping voltage (RMS) |
140 |
AC suppression surge
current rating |
97,000 amps (36,000 NM /
61,000 CM) |
AC suppression components
used |
Metal oxide varistors,
toroidal balanced chokes, ferrite rod-core inductors and
VHF capacitors. |
Safe thermal fusing |
Prevents unsafe conditions
during extreme extended over-voltages and catastrophic
occurrences |
UL1499 let through rating |
330V - UL Verified |
IEEE587 Cat. A ringwave let
through |
Less than 35 volts |
EMI / RFI filtering |
40-80 dB |
Isolated filter banks |
Unique isolated filter bank
design offers additional filtering between each duplex
pair of outlets on the strip to prevent electrical noise
interference between connected loads. Includes 3 filter
banks. |
Immunity |
Conforms to IEE 587 / ANSI
C62.41 |
DATALINE SURGE SUPPRESSION |
Cable (Coax) Protection |
No |
Network (Ethernet)
Protection |
No |
PHYSICAL |
Shipping weight (lbs) |
2.68 |
Unit Dimensions (HWD/in) |
2.5 x 9 x 3.50 |
Shipping Dimensions (HWD/in) |
11.5 x 7 x 3 |
Unit weight (lbs) |
2.18 |
Material of construction |
Metal |
Integrated keyhole mounting
tabs |
Metal end caps are fitted
with keyhole mounting tabs for wallmount installation |
Receptacle Color |
Black |
AC line cord color |
Gray |
Style |
Strip |
SPECIAL FEATURES |
Appearance |
Rugged all-metal corded
strip format with high quality duplex receptacles |
Right-Angle Plug |
Yes |
CERTIFICATIONS |
UL1449 3rd Edition (AC
Suppression) |
UL1449 3rd EDITION |
UL1283 (EMI Filter) |
UL1283 |
UL1363 (Power Tap) |
UL1363 |
cUL / CSA (Canada) |
cUL |
Approvals |
Exceeds IEEE 587 category
A&B specifications |
WARRANTY |
Product Warranty Period
(U.S., Canada & Puerto Rico) |
Lifetime limited warranty |
Connected Equipment
Insurance (U.S., Canada & Puerto Rico) |
$50,000 Ultimate
Lifetime Insurance |
†
Tripp Lite uses primary and third-party agencies to test its
products for compliance with standards.
|
