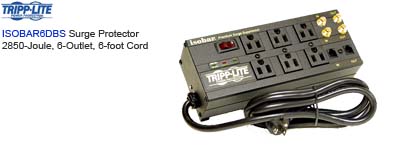

Surge Protector, Surge
Suppressor, Tripp Lite ISOBAR6DBS
Isobar Home/Business Theater
Surge Suppressor
Premium-performance surge and line-noise
protection for all components
2850 Joule Rating, 6 Outlets, 6-foot Cord,
All Metal Housing, Isolated Filter Banks
2-line coaxial (gold) surge protection, 1-line tel/modem surge protection
PSG-TP-06-ISB6DBS
Description
Tripp Lite’s ISOBAR6DBS Isobar Home/Business Theater Surge
Suppressor provides premium protection--2850 joules--stopping damaging
surges and filtering disruptive line noise so components perform at their
peak! You can see and hear the difference: sharper, crisper video; deeper,
fuller audio and longer component life spans. Perfect for small-to-medium
home/business theater installations: high-definition TVs, satellite and
A/V receivers, DVD/CD players and more. Exclusive Isolated Filter Banks
eliminate noise interference between components. 6 outlets (with
transformer spacing and plug-in safety covers), 2-line coaxial protection
and 1-line tel/modem protection safeguard an entire home/business theater
system. Includes all-metal housing, three diagnostic LEDs, 6-ft. cord with
a right-angle plug, 6-ft. coaxial cable and 6-ft. phone cord.
Key Buying Points
-
2850 joules surge suppression rating with EMI/RFI line
noise filtering help components perform at their peak (sharper, crisper
video; deeper, fuller audio and longer component life spans)
-
Isolated Filter Banks eliminate interference between
connected components
-
All-metal housing safely withstands the strongest surges
-
6 surge-protected NEMA 5-15R AC outlets safeguard an
entire home/business theater system
-
Widely spaced outlets accommodate up to 3 transformers
-
Four plug-in safety covers protect against accidental
contact
-
2 sets of surge-protected Type F gold coaxial connectors
(with included 6-ft. coaxial cable) safeguard components on cable,
satellite or antenna line
-
1-line tel/modem surge protection (with included 6-ft.
phone cord) safeguards personal video recorders (PVRs) on a single
dial-up line.
-
6-ft. cord with right-angle NEMA 5-15P plug provides
convenient location anywhere within a home/business theater system
-
3 diagnostic LEDs alert user to protection, line power
and fault status
-
Keyhole slots provide convenient wall or cabinet
mounting
-
Illuminated master switch provides one-touch power
control over all components. Circuit breaker protects against dangerous
system overload
-
All-metal housing (black) stands up to the most
demanding environments
-
UL and cUL listed
Typical Applications
Perfect for small-to-medium home/business theater installations:
high-definition TVs, satellite and A/V receivers, DVD/CD players and more
Package Includes
Complete Specifications
SYSTEM OVERVIEW |
System overview:
|
Tripp Lite’s ISOBAR6DBS Home/Business Theater Surge Suppressor
provides premium protection--2850 joules--stopping damaging surges
and filtering disruptive line noise so components perform at their
peak! Exclusive Isolated Filter Banks eliminate noise interference
between components. 6 outlets (with transformer spacing), 2-line
coaxial protection and 1-line tel/modem protection safeguard an
entire home/business theater system. $250,000 Ultimate Lifetime
Insurance coverage with Data Recovery Warranty (USA and Canada
only). Includes all-metal housing, three diagnostic LEDs, 6 ft. cord
with a right-angle plug, 6 ft. coaxial cable and 6 ft. phone cord.
|
Voltage compatibility:
|
120 VAC
|
Frequency compatibility:
|
50/60 Hz
|
OUTPUT |
Output volt amp capacity (amps):
|
12 A
|
Output watt capacity (watts):
|
1440 W
|
Outlet quantity / type:
|
6 NEMA 5-15R output receptacles
|
Transformer accomodation:
|
Accommodates 3 transformers
|
INPUT |
Input connection type:
|
NEMA 5-15P
|
Input cord length (ft.):
|
6
|
Input cord length (m):
|
1.8
|
Input plug features:
|
Space-saving right angle input plug
|
Input cord gauge, type:
|
14 gauge, SJT
|
Recommended electrical service:
|
120V 15A
|
LEDS ALARMS & SWITCHES |
Diagnostic LEDs:
|
Built-in LEDs confirm line power, protection and fault status
|
Switches:
|
Combination AC circuit breaker and illuminated 2 position on/off
power switch
|
AC SURGE / NOISE SUPPRESSION |
Protection modes:
|
Includes full normal mode (H-N) and common mode (N-G / H-G) line
surge suppression
|
AC suppression joule rating:
|
2850 joules
|
Clamping voltage (RMS):
|
140V
|
AC suppression response time:
|
NM = instantaneous CM = < 1 ns
|
UL1499 let through rating:
|
330V - UL verified
|
EMI / RFI filtering:
|
Up to 40 dB
|
DATALINE SURGE SUPPRESSION |
TEL / Modem line protection:
|
Includes single line phone suppression via built-in RJ-style
connectors (260V clamping, center 2 wires protected), includes cable
|
Coax line protection:
|
Includes coax surge suppression via 2 sets of built-in Type F gold
coax jacks, includes coax cable
|
PHYSICAL |
Shipping weight (lbs):
|
3.6
|
Shipping weight (kg):
|
1.6
|
Unit weight (lbs):
|
2.8
|
Unit weight (kg):
|
1.27
|
Unit Dimensions (HWD/in):
|
2.5 x 9 x 3.5
|
Unit Dimensions (HWD/cm):
|
6.35 x 22.9 x 8.9
|
Shipping Dimensions (HWD/in):
|
3 x 11.5 x 7
|
Shipping Dimensions (HWD/cm):
|
7.62 x 29.2 x 17.8
|
Material of construction:
|
Extruded aluminum
|
Integrated keyhole mounting tabs:
|
Keyhole mounting slots allow desk or wall mounting
|
Housing color:
|
Attractive black color scheme
|
AC line cord color:
|
Black
|
CERTIFICATIONS |
UL1449 1998 Rev. (AC Suppression):
|
UL1449
|
UL1363 (Power Tap):
|
UL1363
|
UL497A (Communications):
|
UL497A
|
FCC Part 68 (Communications):
|
FCC Part 68
|
cUL / CSA (Canada):
|
cUL
|
Approvals:
|
Exceeds IEEE 587 category A&B specifications
|
Specifications are subject
to change without notice.
