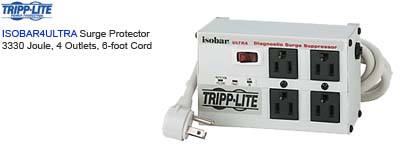

Surge Protector, Surge Suppressor, Tripp Lite ISOBAR4ultra
Premium surge, spike and line noise protection
3330 Joule Rating, 4 Outlets, 6-foot Cord, All Metal Housing, Isolated Filter Banks
PSG-TP-04-ISB4Ultra

Links:

Features:

4 outlets, 6ft cord, 3330 joules, All-metal housing with LED's - Isobar Surge Suppressor

  • 4 outlets/6 ft. cord

  • 3330 joule rating

  • All metal housing with LEDs

  • Isolated filter banks

  • $50,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)

Overview

For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive computer, networking and telecom equipment. With more than 14 million satisfied customers, the Isobar remains the world's number one selling premium surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOBAR4ULTRA offers 4 outlets arranged in two filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3330 joules/85,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 2 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 6 foot AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of 4 child safety covers. Lifetime warranty with $50,000 Ultimate Lifetime connected equipment insurance (USA & Canada Only).

PLUG/OUTLETS: Input: NEMA 5-15P/Output: 4 NEMA5-15R/6 ft. AC line cord

ELECTRICAL: 120V AC, 50/60Hz (Requires NEMA 5-15R wall receptacle)

SUPPRESSION: AC: 140V RMS Clamping/3330 joules/85,000 amps

FORMAT: Corded all-metal strip with transformer spaced outlets

Key Buying Points

  • Tripp Lite's ISOBAR is the world's number one selling premium suppressor series with more than 14 million satisfied customers and a safety-tested history of 20+ years

  • Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B specifications and reducing 6,000V test surges to harmless levels less than 35 volts.

  • Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment.

  • 4 outlets arranged in two filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on.

  • Network grade surge suppression rated at 3330 joules/97,000 amps

  • Widely spaced outlets accommodate up to 2 large transformer plugs without blocking outlets

  • 3 LED indicators confirm suppressor operation and site wiring status, plus warning of suppressor or electrical fault conditions

  • Lighted power switch confirms power on/off status

  • 6 foot AC line cord with space-saving angled input plug6 foot AC line cord with space-saving angled input plug

  • Keyhole mounting tabs allow permanent installation

  • Set of 4 outlet covers safely seal off unused outlets

  • 120VAC, 50/60Hz electrical compatibility

  • $50,000 Ultimate Lifetime Insurance (USA & Canada Only)

  • Lifetime product warranty

  • UL1449 3rd Edition listed - surge suppression (330V let-through), UL1283 listed - EMI protection, UL1363 listed - power tap, cUL approved to Canadian standards

Typical Applications

Ideal for premium protection of personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio/video and home theater systems in any home, office or industrial application.

Package Includes

  • ISOBAR4ULTRA premium surge suppressor

  • Set of 4 outlet safety covers

  • Instruction manual with warranty information

Complete Specifications:

OVERVIEW
Intended Application Home/Office, Computer Networks
OUTPUT
Frequency compatibility 50 / 60 Hz
Output watts 1440
Output volt amp capacity (amps) 12
Outlet quantity / type 4 NEMA 5-15R
Transformer accommodation Supports up to 2 large transformer plug accessories without covering remaining outlets
INPUT
Recommended Electrical Service 120V (110-125V)
Input connection type NEMA 5-15P input plug
Input plug features Space-saving right angle plug
Input cord length (ft.) 6
Voltage compatibility (VAC) 120
LEDS ALARMS & SWITCHES
Switches Two position red illuminated on/off power switch
Diagnostic LEDs PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
SURGE / NOISE SUPPRESSION
AC suppression joule rating 3330
AC suppression response time NM = 0 ns. CM = <1 ns
Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping voltage (RMS) 140
AC suppression surge current rating 85,000 amps (36,000 NM / 49,000 CM)
AC suppression components used Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
Safe thermal fusing Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1499 let through rating 330V - UL Verified
IEEE587 Cat. A ringwave let through Less than 35 volts
EMI / RFI filtering 40-80 dB
Isolated filter banks Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 2 filter banks.
Immunity Conforms to IEE 587 / ANSI C62.41
DATALINE SURGE SUPPRESSION
Cable (Coax) Protection No
Network (Ethernet) Protection No
PHYSICAL
Shipping weight (lbs) 2.9
Unit Dimensions (HWD/in) 2.5 x 6 x 3.5
Shipping Dimensions (HWD/in) 11.5 x 7 x 3
Unit weight (lbs) 2.4
Material of construction Metal
Integrated keyhole mounting tabs Metal end caps are fitted with keyhole mounting tabs for wallmount installation
Receptacle Color Black
AC line cord color Gray
Style Strip
SPECIAL FEATURES
Appearance Rugged all-metal corded strip format with high quality duplex receptacles
Right-Angle Plug Yes
CERTIFICATIONS
UL1449 3rd Edition (AC Suppression) UL1449 3rd EDITION
UL1283 (EMI Filter) UL1283
UL1363 (Power Tap) UL1363
cUL / CSA (Canada) cUL
Approvals Exceeds IEEE 587 category A&B specifications
WARRANTY
Product Warranty Period (U.S., Canada & Puerto Rico) Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico) $50,000 Ultimate Lifetime Insurance

† Tripp Lite uses primary and third-party agencies to test its products for compliance with standards.
