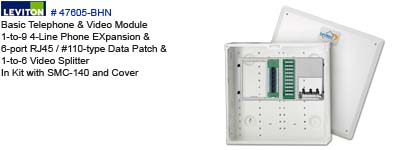

Voice & Video Distribution Module
Leviton # 47603-BHN for
Structured Media Center
1-to-9 4-Line Phone Expansion &
6-port RJ45 / #110-type Data Patch &
1-to-6 Video Splitter
In Kit with SMC-140 and Cover
BOX-LV-xxx

Link(s):

Application:

Leviton's Basic Home Networking Unit combines a 1x9 Bridged Telephone Module, Category 5e Voice and Data Module and a 6-way Video Splitter in a dedicated bracket for essential telephone, video distribution and home networking. Handles up to four telephone lines through to nine locations. Suitable for phone, fax or modem. The unit also features six video location and six data location.

Standards Compliance:

Meets all applicabel standards: cULus Listed, TIA/EIA-568A and FCC Part 68 Compliant.

Physical Specification:

  • Material:
    • Bracket: 18-gauge steel with white, power-coat finish.
    • 1x9 Bridge Telephone Module: Printed circuit board.
    • 6-way Video Splitter:
    • Die-cast housing and printed circuit board construction
    • Category 5e Voice and Data Module: Printed circuit board with six Category 5e ports.
  • Dimension:
    • Bracket: 6.25"H x 13.06"W x 2.50"D
    • 1.9 Bridge Telephone Module: 2.74"H x 6.57"W x 1.82"D
    • 6-way Video Splitter:
      3.0"H x 6.58"W x 1.4"D
      Insertion Loss: 10.0dB ~ 12.1dB
      Return Loss: 6.5dB ~ 23.5dB
      Isolation: 28.9dB ~ 37.5dB
    • Category 5e Voice and Data Module: 2.24"H x 6.57"W x 1.96"D

Warranty Information:

One-year limited product warranty.

Design Considerations:

  • Fits easily into Leviton's Structured Media Centers.
  • Available as a stand-alone unit, or as part of a kit for SMA-100 or SMC-140.
  • Determine outlet locations and carefully plan cable routing to ensure the selected unit satisfies requirements. Expansion modules available separately.
  • Install 75 Ohm termination caps on unused outputs of 6-way Video Splitter to reduce likelihood of signal distortion or 'ghostin'.
  • Use Video Amplifier ( PN # 48210-VA ) for increased signal strength.

Typical Specification:

The Basic Home Networking Unit shall meet all applicable standards: cULus Listed; TIA/EIA-568A and FCC Part 68 compliant. The unit shall handle up to four phone lines through to nine locations, six data locations and six video locations. The unit shall include a mounting bracket, 1x9 Bridged Telephone Module, 6-way Video Splitter, and Category 5e Voice and Data Module. It shall fit into Levion's Structured Media Centers. Available as a stand-alone unit or as part of a kit for the SMC-100 nad SMA-140. A one-year limited product warranty shall be provide by the manufacturer.

Part Number:

Description Part No.
Basic Home Networking Unit 47603-BHN
In kit with SMC-100 insert and cover 47604-BHN
In kit with SMC-140 and cover 47605-BHN
