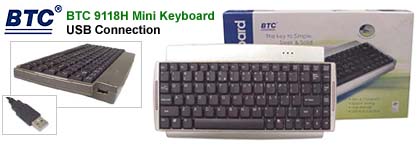

USB Mini Keyboard
BTC-9118H Silver with USB Port
Features
Offers hub function
Supports one USB downstream ports
Compact and fashionable design
System Requirement
1. USB spec. 1.1 or it's compatible
2. Microsoft Windows Windows 98, Windows 2000, Windows ME or Windows XP
operating system
3. USB port
Specification
> Key numbers: 86/87/87/88 (US/UK/KOR/JP)
>
Input power: 5Vdc, 50 mA
>
Connector & pin assignment: USB series A plug
>
Switch activation mechanism, Membrane
>
Travel distance: 3.5 +/-0.5 mm
>
Peak load before make (normal key): 55 +/- 20 g
>
Keyboard dimension: 302(L) x 142.5(W) x 28.5(H) mm
|
