Features:

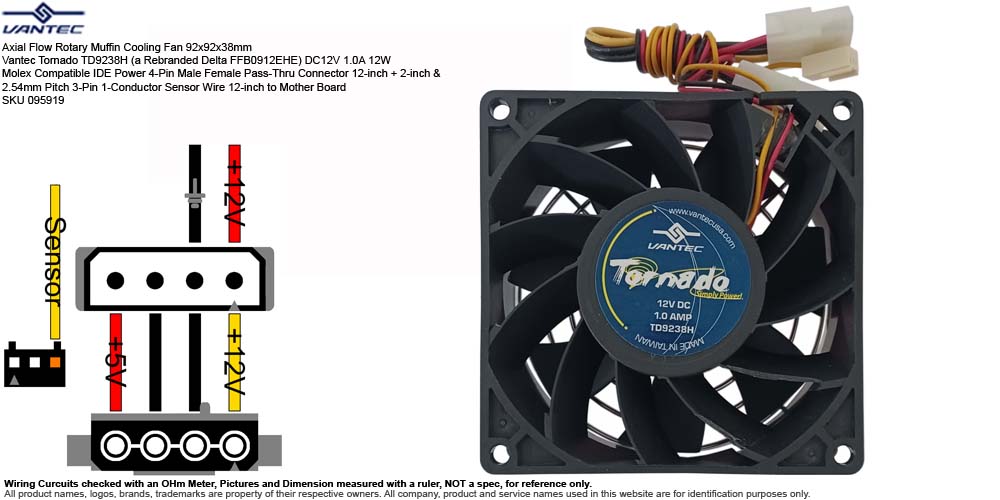

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x38mm Vantec Tornado TD9238H (a Rebranded Delta FFB0912EHE) DC12V 1.0A 12W Molex Compatible IDE Power 4-Pin Male Female Pass-Thru Connector 14-inch with 3-Pin Sensor Wire 12.5” to Mother Board SKU 095919
• Manufacturer: Delta Electronics, Inc.
• Brand or Distributor: Vantec
• Model Number: (and / or Compatible / Equivalent)
  • Vantec Tornado TD9238H
  • Rebranded Delta FFB0912EHE with 3-Pin Mother Board RPM Monitoring
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 92x92x38mm
  • Power Rating: DC12V 1.0A 12W
  • Bearing: Double Ball Bearing
  • Speed: 4800 RPM
  • Air Flow: 119 CFM
  • Noise Level: 55~56.4 dBA
  • Wire Length: 14-inch
    • 12-inch: from fan to IDE 4-Pin Male Connector
    • 2-inch: from IDE 4-Pin Male Connector to IDE 4-Pin Female Connector
    • 12-inch: from fan to 3-Pin Mother Board RPM Monitoring Connector
  • Connection:
    • Molex Compatible IDE Power 4-Pin Male Female Pass-Thru Connector
    • 2.54mm Pitch 3-Pin 1-Conductor Connector
• Weight: 7.9 oz (estimated shipping weight 12 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts, Unused Open Box, chips on the frame's perimeter, cosmetic damage no compromise on fan's integrity or airflow, (reduced price to reflect the minor cosmetic wear)
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For use with or pulled from:
  • Saved from damaged shipping package.
  • Rebranded industrial-grade fans from Delta's high performance line FFB0912EHE by adding features with standard power connectors and a separate lead for motherboard RPM monitoring.
  • Made of PBT Plastic (Polybutylene Terephthalate) for its high dimensional stability and heat resistant but has specific weaknesses that lead to brittleness. Rigid and Stiff, the frame doesn't warp and remains straight and the motor remains aligned if a small piece of the outer frame chips off.
  • Serial Number Available or Sold:
    • SN 0092005 For parts, Unused Open Box, chips on the frame's perimeter.
