Features:

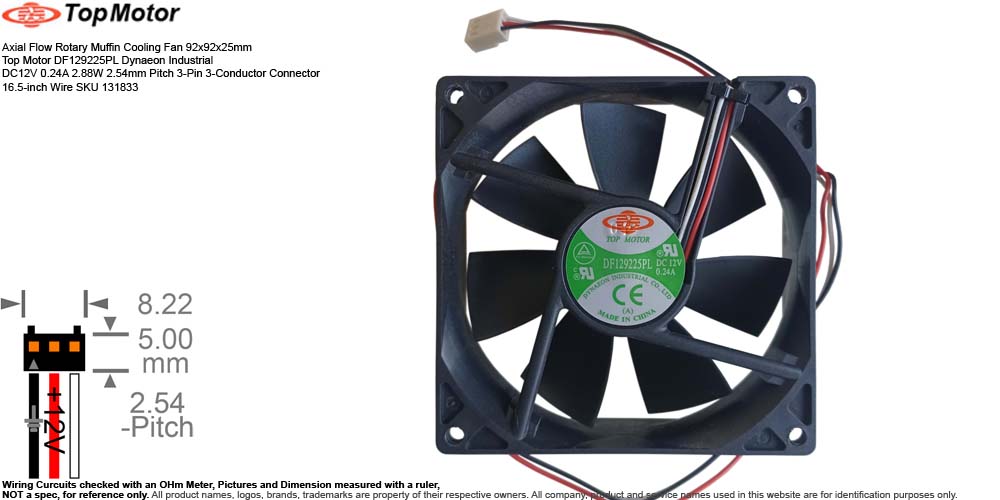

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Top Motor DF129225PL Dynaeon Industrial DC12V 0.24A 2.88W 2.54mm Pitch 3-Pin 3-Conductor Connector 16.5-inch Wire SKU 131833
• Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
• Brand and Distributor:
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model:
  • DF129225PL
• Features.:
  • Design: DC Brushless Fan
  • Size: 92x92x25mm
  • Power Rating: DC12V 0.24A 2.88W
  • Bearing: Sleeve Bearing
  • Speed: 1500 RPM +/-10%
  • Air Flow: 27 CFM
  • Noise Level: 20~22 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connector: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 16.5-inch
• Weight: 2.8 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • DF129225PL is a low-speed, ultra-quiet 92mm x 92mm x 25mm DC brushless axial fan manufactured by Dynaeon Industrial. It is highly valued in electronics repair for its low acoustic profile and steady airflow, widely used for ATX Power Supplies, HTPCs & Audio Gear, Network Hardware, Medical Equipment.
  • DF129225PL Part Number Breakdown:
    • 'D' DC (Direct Current)
    • 'F' Axial Fan (Muffin Fan)
    • '12' 12 Volts DC
    • '92' 92x92mm frame size
    • '25' Frame Thickness 25 mm
    • 'P' Speed Rating Past-Low / Ultra-Low Speed (Lower than "S" Slow / "M" Medium)
    • 'L' Bearing Type Sleeve Bearing (Economy / quiet horizontal mount)
  • Serial Number Available or Sold:
    • SN 0083780 Used
