Features:

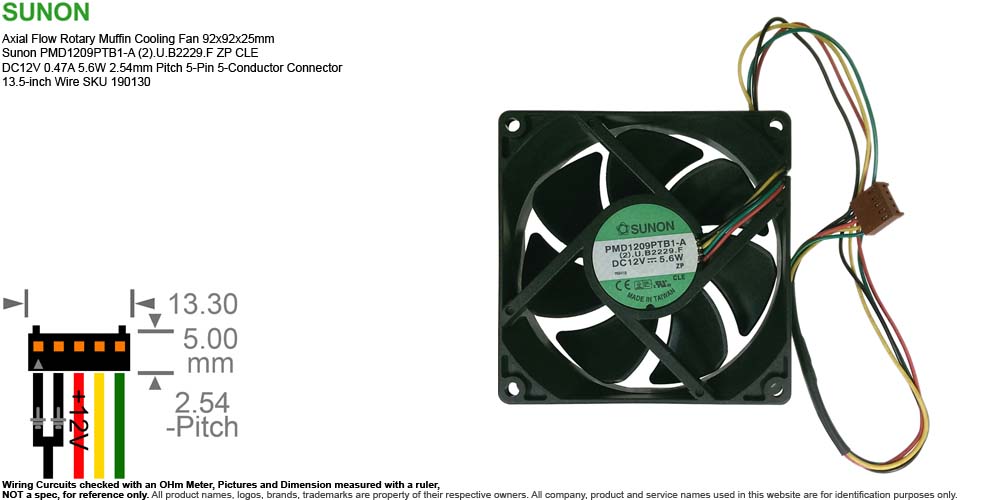

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Sunon PMD1209PTB1-A (2).U.B2229.F ZP CLE DC12V 0.47A 5.6W 2.54mm Pitch 5-Pin 5-Conductor Connector 13.5-inch Wire SKU 190130
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • Sunon PMD1209PTB1-A (2).U.B2229.F ZP CLE
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 92x92x25mm
  • Power Rating: DC12V 0.47A 5.6W
  • Bearing: Precision Dual Ball Bearing
  • Speed: 4200 RPM
  • Air Flow: 77 CFM
  • Noise Level: 48 dB(A)
  • Wire Length: 13.5-inch
  • Connection: 2.54mm Pitch 5-Pin 5-Conductor Connector
• Weight: 4.9 oz (estimated shipping weight 9 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box Unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • PMD1209PTB1-A (2).U.B2229.F ZP CLE is a high-performance server-grade square cooling fan designed for high-density thermal management.
    • 'PMD' stands for high-power, high-static pressure Power Motor DC series,
    • '12' runs on standard 12V DC architecture.
    • '09' designed around a 92mm physical frame square footprint.
    • 'P' frame composition manufactured from flame-retardant PBT plastic.
    • 'T' thickness profile matches 25mm structural depth.
    • 'B1' engineered with dual precision ball bearing (B) and categorized as a top-tier high-speed performance tier (1)
    • 'A' means the primary electrical design integrated an auto restart circuit which will cut the power to the coils to prevent overheating if the blade becomes physically obstructed or locked during operation.
    • '(2)' representing Revision 2 frame styling or updated motor pole structure updates.
    • 'U' denotes ultra-high speed / high-density inner core configuration.
    • 'B2229.F' is an OEM factory wiring designation identifying a custom 2.54mm pitch 5-pin layout paired with a specific lead wire tailored to dedicated server system motherboard.
    • 'ZP' stands for Impendence Protected
    • 'CLE' is a factory control suffix denotes Lead Wire & Connector Style
  • Pulled from HP ProLiant ML350 G5 (Generation 5) Server StorageWork AiO600 G5 Model HSTNS-2116.
  • Serial Number Available or Sold:
    • SN 0089425 Used
    • SN 0089426 Used
