Features:

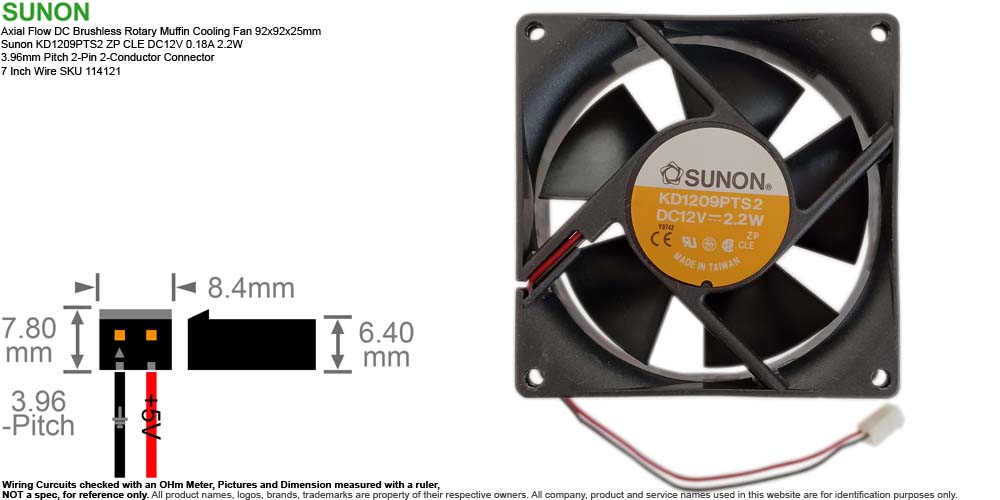

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Sunon KD1209PTS2 ZP CLE DC12V 0.18A 2.2W 3.96mm Pitch 2-Pin 2-Conductor Connector 7 Inch Wire SKU 114121
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • KD1209PTS2 ZP CLE
• Features.:
  • Design: DC Brushless Fan
  • Size: 92x92x25mm
  • Power Rating: DC 12V 0.18A 2.2W
  • Bearing: Sleeve Bearing
  • Speed: 2400 RPM
  • Air Flow: 44 CFM
  • Noise Level: 32 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connector: 3.96mm Pitch 2-Pin 2-Conductor Connector
  • Wire Length: 7-inch
• Weight: 4.5 oz (estimated shipping weight 8 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box Unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused Computer Power Supply, may signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • KD1209PTS2 ZP CLE is a low-power legacy axial flow cooling fan designed for quiet computer case and chassis ventilation.
    • 'KD' series DC Brushless cooling fan
    • '12' 12V DC rated voltage
    • '09' 92x92mm frame size
    • 'P' PBT plastic frame and impeller material construction
    • 'T' 25mm frame thickness
    • 'S' sleeve bearing
    • '2' medium speed motor configuration
    • 'ZP' stands for Impendence Protected
    • 'CLE' is a factory control suffix denotes Lead Wire & Connector Style.
  • Pulled from unused AT Computer Power Supply Power-Win PW-250, PW-380AATA
  • Serial Number Available or Sold:
    • SN 0083716 Used
    • SN 0099050 Used
    • SN 0111147 Used
