Features:

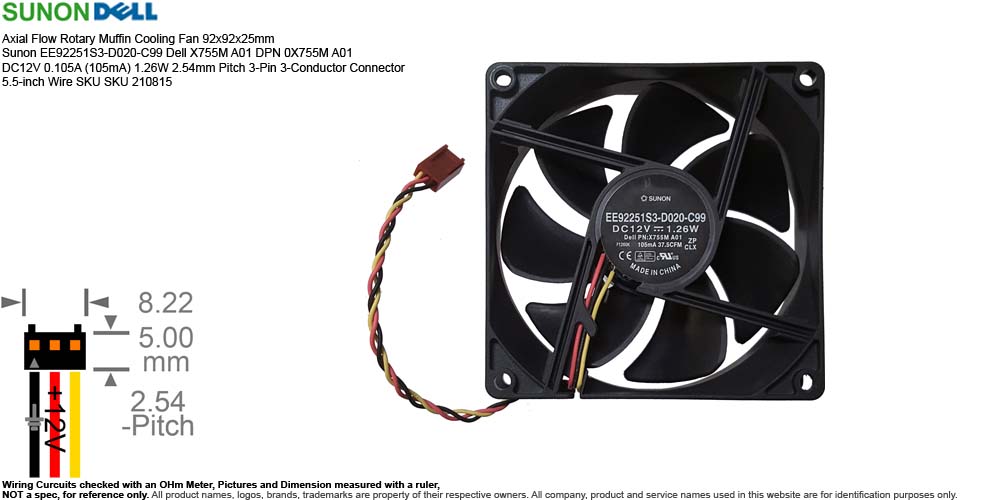

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Sunon EE92251S3-D020-C99 Dell X755M A01 DPN 0X755M A01 DC12V 0.105A (105mA) 1.26W 2.54mm Pitch 3-Pin 3-Conductor Connector 5.5-inch Wire SKU SKU 210815
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand or Distributor: Sunon / DellModel:
  • Sunon EE92251S3-D020-C99 ZP CLX
  • Dell X755M A01
  • DPN 0X755M A01
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 92x92x25mm
  • Power Rating:DC12V 0.105A (105mA) 1.26W
  • Bearing: Sleeve with Lubrication Retention (Sunon S3 Class)
  • Speed: 2200~3000 RPM
  • Air Flow: 37.5 CFM
  • Noise Level: 19~26 dB(A)
  • Wire Length: 5.5-inch
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
• Weight: 3.1 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • EE92251S3-D020-C99 ZP CLE is primarily manufactured as a factory-original rear chassis exhaust fan for various desktop computer towers.
    • 'E' (1st) E series utilizes an optimized internal closed-loop lubricant reservoir design which prevents dry-out and improves long-term reliability and extends the operational lifespan of the sleeve bearing.
    • 'E' (2nd) is the internal motor core classification that identifies the mechanical torque configuration and stator diameter profile required to spin a 92mm physical blade assembly.
    • '9225' shows 92mm outer frame length and width, 25mm the frame thickness or depth.
    • '1' indicates the operating system voltage is 12V DC.
    • 'S3' sleeve bearing speed rank 3 (low-speed performance tier).
    • 'D020-C99' is the customer track code indicating an exclusive factory pinout built for Dell chassis.
    • 'ZP' stands for Impendence Protected
    • 'CLE' is a factory control suffix denotes Lead Wire & Connector Style.
  • Pulled from
    • Dell Inspiron 660 Computer.
    • Dell Vostro 230 Computer.
  • Serial Number Available or Sold:
    • SN 0089881 CN-0X755M-60365-24T-I421-A01 Used
    • SN 0090712 CN-0X755M-60365-12K-3482-A01 Used
