Features:

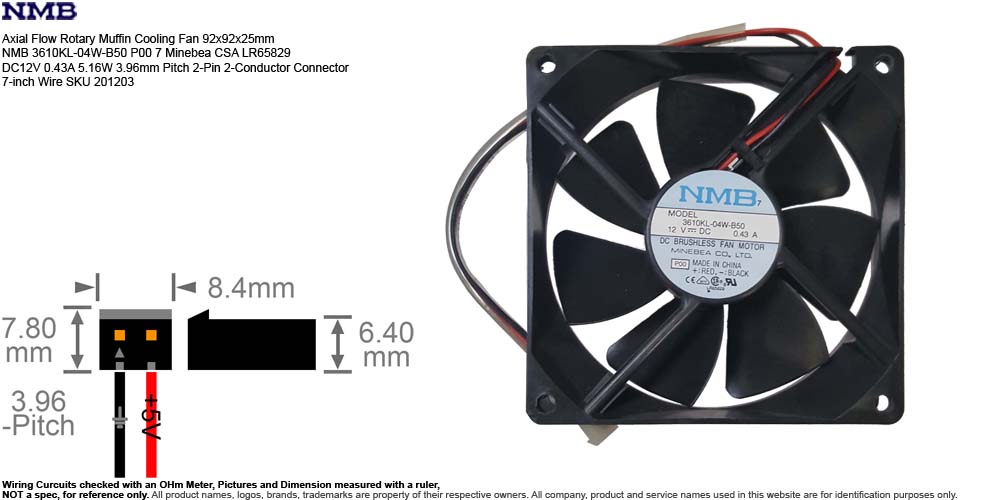

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm NBA 3610KL-04W-B50 P00 7 Minebea Co., Ltd. CSA LR65829 DC12V 0.43A 5.15W 3.96mm Pitch 2-Pin 2-Conductor Connector 7-inch Wire SKU 201203
• Manufacturer: Minebea Co., Ltd
  • Minebea Mitsumi: The official parent company.
  • NMB: Short of Nippon Miniature Bearing.
  • NMB-MAT: a brand name resulting from 2004 joint venture between Minebea and Matsushita (now Panasonic).
  • NMB Technologies: The North American sales and marketing arm of the group.
• Brand: or Distributor: NMB
• Model:
  • NBA 3610KL-04W-B50 P00
  • CSA LR65829
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 92x92x25mm
  • Power Rating: DC 12V 0.56A 6.72W
  • Bearing: Dual Ball Bearing
  • Speed: 3000~3500 RPM
  • Air Flow: 50~60 CFM
  • Noise Level: 35~40 dB(A)
  • Connector: 3.96mm Pitch 2-Pin 2-Conductor
  • Wire Length: 7-inch
• Weight: 3.2 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Minebea 3610KL-04W-B50 P00 7 is a high-reliability 92mm DC cooling fan for chassis cooling, power supplies, and industrial equipment, featuring a dual ball bearing for longevity. '3610' refers to the series and frame 92mm. 'KL' indicates the 'K' series with long-life ball bearing. '04W' specifies 12V DC operation. 'B50' represents the speed/performance level, the high-speed tier in this series. 'P00' denotes the flange and connector indicating a standard OEM configuration. '7' indicates the manufacturer series or the plant code.
  • Serial Number Available or Sold:
    • SN 0090441 Used
    • SN 0094182 Used
