Features:

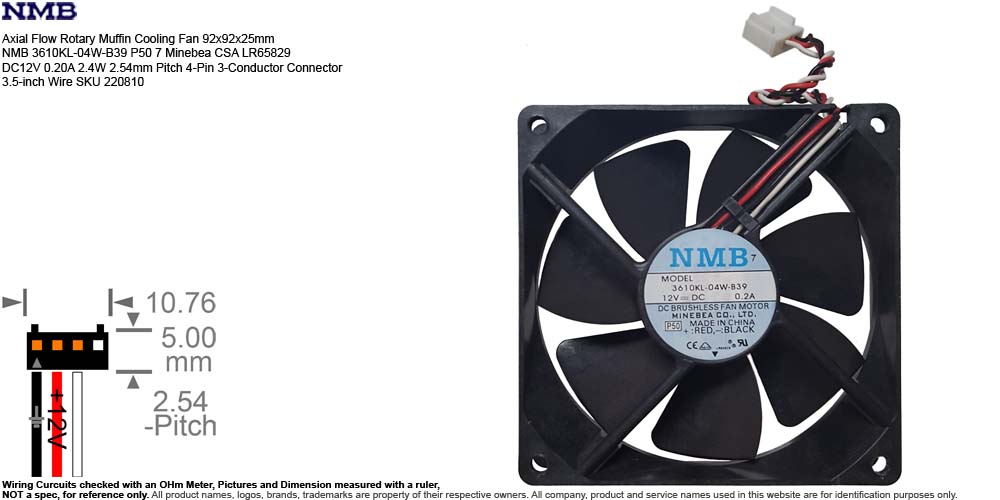

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm NBA 3610KL-04W-B39 P50 7 Minebea Co., Ltd. CSA LR65829 DC12V 0.2A 2.4W 2.54mm Pitch 4-Pin 3-Conductor Connector 18-inch Wire SKU 220810
• Manufacturer: Minebea Co., Ltd
  • Minebea Mitsumi: The official parent company.
  • NMB: Short of Nippon Miniature Bearing.
  • NMB-MAT: a brand name resulting from 2004 joint venture between Minebea and Matsushita (now Panasonic).
  • NMB Technologies: The North American sales and marketing arm of the group.
• Brand: or Distributor: NMB
• Model:
  • NBA 3610KL-04W-B39 P50
  • CSA LR65829
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 92x92x25mm
  • Power Rating: DC 12V 0.56A 6.72W
  • Bearing: Dual Ball Bearing
  • Speed: 2450 RPM
  • Air Flow: 40.6 CFM
  • Noise Level: 34 dB(A)
  • Connector: 2.54mm Pitch 4-Pin 3-Conductor Connector
  • Wire Length: 3.5-inch
• Weight: 3.0 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Minebea 3610KL-04W-B39 P50 7 is a high-reliability 92mm DC cooling fan for chassis cooling, power supplies, and industrial equipment, featuring a dual ball bearing for longevity. '3610' refers to the series and frame 92mm. 'KL' indicates the 'K' series with long-life ball bearing. '04W' specifies 12V DC operation. 'B39' represents the speed/performance level, the medium-speed tier in this series. 'P50' denotes the flange and connector indicating a standard OEM configuration. '7' indicates the manufacturer series or the plant code.
  • Pulled from Supermicro Superserver 6040 with P4DPE-G2 Rev .21 Mother Board
  • Serial Number Available or Sold:
    • SN 0090473 Used
    • SN 0090474 Used
    • SN 0090475 Used
    • SN 0090476 Used
    • SN 0090477 Used
    • SN 0090478 Used
    • SN 0094479 Used
    • SN 0094480 Used
