Features:

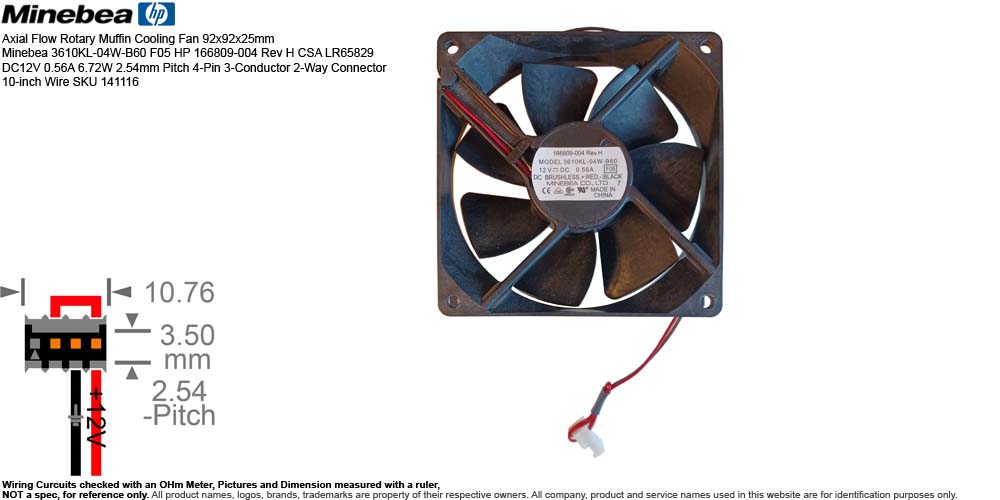

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Minebea 3610KL-04W-B60 F05 HP 166809-004 Rev H CSA LR65829 DC12V 0.56A 6.72W 2.54mm Pitch 4-Pin 3-Conductor 2-Way Connector 10-inch Wire SKU 141116
• Manufacturer: Minebea
  • Minebea Mitsumi: The official parent company.
  • NMB: Short of Nippon Miniature Bearing.
  • NMB-MAT: a brand name resulting from 2004 joint venture between Minebea and Matsushita (now Panasonic).
  • NMB Technologies: The North American sales and marketing arm of the group.
• Brand: or Distributor: Minebea / HP Compaq
• Model:
  • Minebea 3610KL-04W-B60 F05
  • HP 166809-004 Rev H
  • CSA LR65829
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 92x92x25mm
  • Power Rating: DC 12V 0.56A 6.72W
  • Bearing: High Quality Ball Bearing
  • Speed: 3600 RPM
  • Air Flow: 61.8 CFM
  • Noise Level: 25~44.5 dB(A)
  • Connector: 2.54mm Pitch 4-Pin 3-Conductor 2-Way
  • Wire Length: 10-inch
• Weight: 3.1 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Minebea 3610KL-04W-B60 F05 is a high performance 92mm DC axial fan typically found in industrial equipment or as an OEM replacement for HP/Compaq systems. '3610' refers to the series and frame 92mm. 'KL' indicates the 'K' series with long-life ball bearing. '04W' specifies 12V DC operation. 'B60' represents the speed/performance level, the high-speed tier in this series. 'F05' denotes the custom flange and connector configuration indicating a specific HP 166809-004 OEM revision.
  • Pulled from HP Compaq EVO W6000 Computer.
  • Serial Number Available or Sold:
    • SN: 7010672 Used
