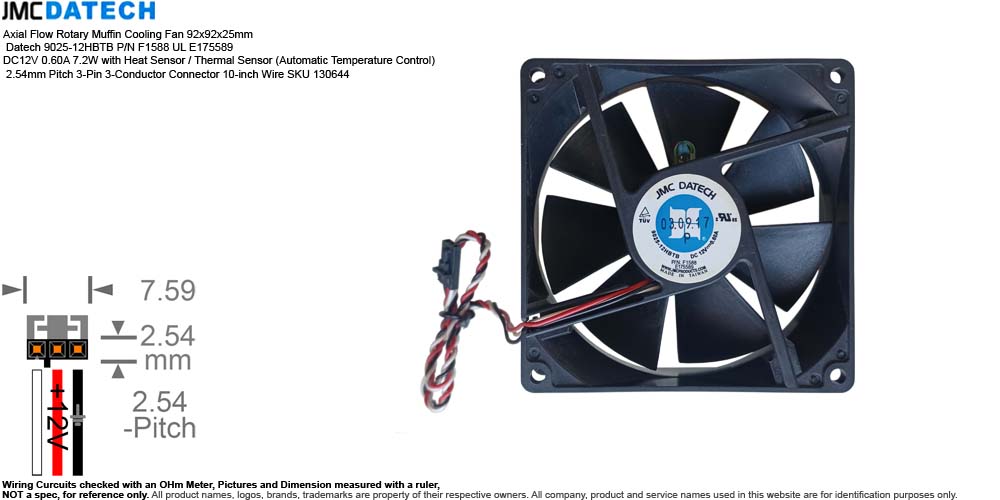

Axial Flow Rotary Muffin Cooling Fan 92x92x25mm
JMC Datech 9025-12HBTB P/N F1588 UL E175589
DC12V 0.60A 7.2W with Heat Sensor / Thermal Sensor
(Automatic Temperature Control)
2.54mm Pitch 3-Pin 3-Conductor Connector
10-inch Wire SKU 130644
FN-9238-xxx
Features:
- Description:
Axial Flow
Rotary Muffin Cooling Fan 92x92x25mm Datech 9025-12HBTB P/N F1588 UL
E175589 DC12V 0.60A 7.2W with Heat Sensor / Thermal Sensor
(Automatic Temperature Control) 2.54mm Pitch 3-Pin 3-Conductor
Connector 10-inch Wire SKU 130644
- Manufacturer:
JMC Products
- Brand Name or
Distributor: JMC Datech
- Model: (and / or
Compatible / Equivalent)
- Datech
9025-12HBTB
- P/N F1588
- Brief Spec.:
- Design: DC Brushless
Cooling Fan
- Fan Size:
92x92x25mm
- Power Rating:
DC12V 0.60A 7.2W
with Heat Sensor / Thermal Sensor (Automatic Temperature Control)
- Bearing:
Dual Ball Bearing
- Speed: 3700~4200
RPM +/-10%
- Air Flow:
67.8~81.0 CFM
- Noise
Level: 49 dBA
- Material:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
-
Frame Housing:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
-
Impeller Blades:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
- Wire Length:
10-inch
- Connection:
2.54mm Pitch 3-Pin 3-Conductor Connector
- Weight: 2.8 oz
(estimated shipping weight 7 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For
Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
may have
signs of cosmetic wear.
- Packaging: Non-Retail
Packaging, in Unprinted Box or Plastic Bag.
- For use with or saved
from: (for reference only)
- Datech
9025-12HBTB is a
high-performance, industrial-grade
92mm axial cooling fan
extensively used as an
OEM replacement part for Dell desktop computers and servers
under the Dell
Part Number F1588.
- 9025-12HBTB Part
Number Breakdown
- '90'
Frame Width,
90mm nominal casing footprint (Actual chassis measures 92mm x
92mm).
- '25'
Frame Thickness,
25mm
depth profile standard for computer case setups.
-
'12'
Voltage Input,
Standard 12 Volts DC operating parameters.
-
'H'
Speed Tier,
High-performance airflow operational baseline.
-
'B'
Bearing Type,
Premium Ball Bearing construction.
-
'T'
Control Type,
Internal Thermistor / Temperature sensor circuit mapping.
-
'B'
Revision Code,
Manufacturer production design generation descriptor.
- Serial Number
Available or Sold:
|
