Features:

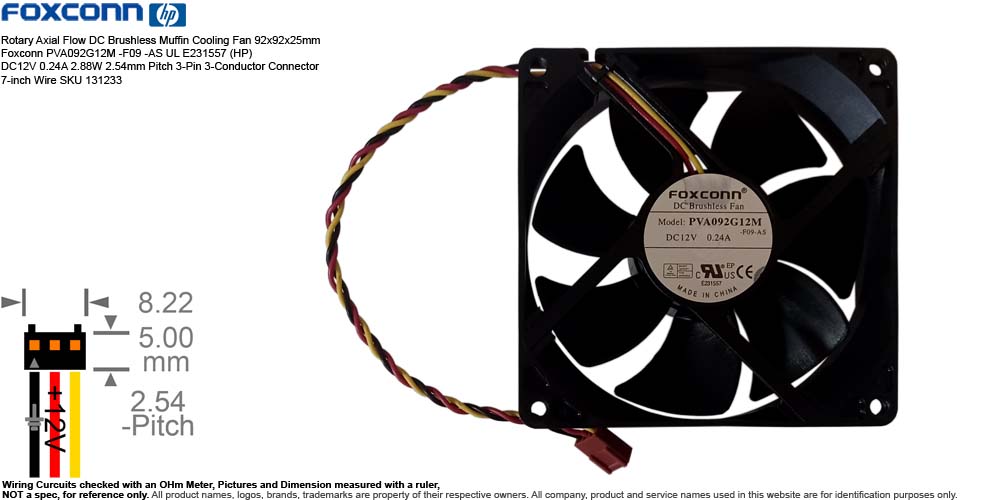

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Foxconn PVA092G12M -F09 -AS UL E231557 (HP) DC12V 0.24A 2.88W 2.54mm Pitch 3-Pin 3-Conductor Connector 7-inch Wire SKU 131233
• Manufacturer: Foxconn Technology Co., Ltd.
• Brand: or Distributor: Foxconn / HP Compaq
• Model: (and / or Compatible / Equivalent)
  • Foxconn PVA092G12M -F09 -AS
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Size: 92x92x25mm
  • Power Rating: DC12V 0.24A 2.88W
  • Bearing: Hydraulic Seal Bearing
  • Speed: 2000~2500 RPM
  • Air Flow: 45 CFM
  • Noise Level: 25~30 dBA
  • Connector: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 7-inch
• Weight: 3.2 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, pulled from working environment, current condition unknown. Not eligible for return or refund.
  • SKU ______O - Open Box, not been used, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • PVA092G12M -F09 -AS is most commonly used in HP Pavilon, EliteDesk, and Compaq series towers. The '-F09' is a specification / firmware code designates the specific electrical properties such as the fan's maximum RPM and its power draw of 0.24A, '-AS' is the physical configuration code refers to a standard 3-pin 3-wirefemale connector and a specific length approx. 6~8 inches.
  • Pulled from HP Pro 3500 MT Computer.
  • Serial Number Available or Sold:
    • SN 0089113 Used
    • SN 0111797 Used
