Features:

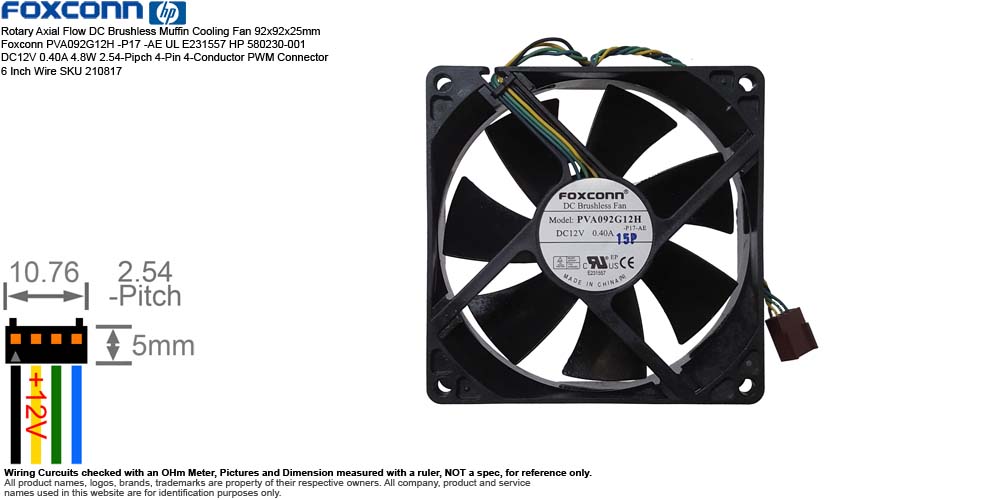

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Foxconn PVA092G12H -P17 -AE (HP) UL E231557 DC12V 0.40A 4.8W 2.54mm Pitch 4-Pin 4-Conductor PWM Connector 6-inch Wire SKU 210817
• Manufacturer: Foxconn Technology Co., Ltd.
• Brand: or Distributor: Foxconn / HP Compaq
• Model:
  • Foxconn PVA092G12H -P17 -AE
• Features.:
  • Design: DC Brushless Cooling Fan
  • Size: 92x92x25mm
  • Power Rating: DC12V 0.40A 4.8W
  • Bearing: Hydraulic Sealed Bearing
  • Speed: 900 ~ 3600 RPM +/- 5%
  • Air Flow: 22 ~ 61 CFM
  • Noise Level: 11 ~ 32 dB(A)
  • Connector: 2.54mm Pitch 4-Pin 4-Conductor PWM Connector
  • Wire Length: 6-inch
• Weight: 3.6 oz (estimated shipping weight 8 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, As-Is. Not eligible for return or refund
  • SKU ______O - Open Box Unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • PVA092G12H -P17 -AE is most commonly associated with the core specification required for HP Compaq Elite and Pro series desktops. The '-P17' is a revision or configuration code refers to a specific combination of wire length , connector type, and PWM speed profile requested by HP. '-AE' is a sub-revision or regional identifier to ensure the part matches the exact electrical and physical requirements for a specific batch of computer chassis.
  • Pulled from HP Compaq Elite 8200 Small Form Factor Computer.
  • Serial Number Available or Sold:
    • SN 0078483 Used
    • SN 0099941 Used
