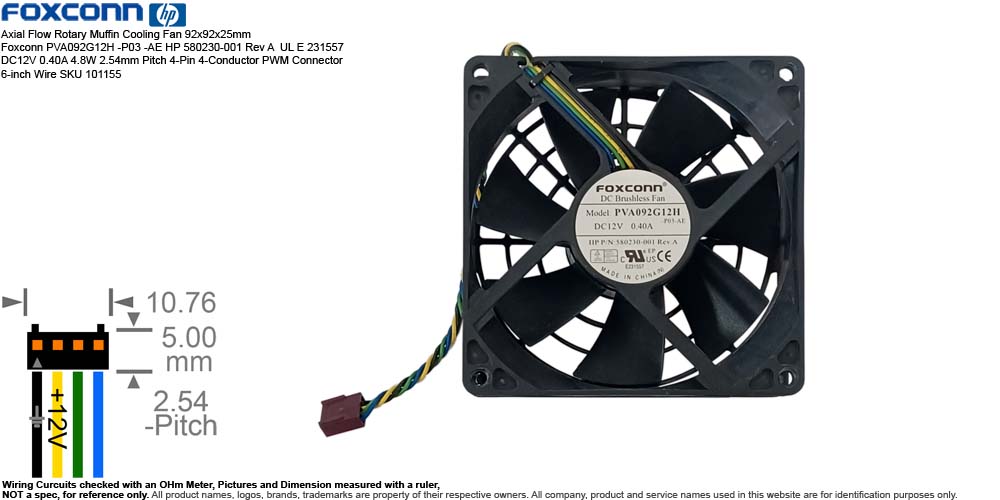

Axial Flow
Rotary
Muffin Cooling Fan
92x92x25mm
Foxconn PVA092G12H
-P03 -AE HP 580230-001 Rev A UL E 231557
DC12V 0.40A 4.8W 2.54mm Pitch 4-Pin 4-Conductor PWM Connector 6-inch Wire
SKU 101155
FN-9225-xxx
Features:
- Description:
Axial
Flow Rotary Muffin Cooling Fan 92x92x25mm Foxconn PVA092G12H
-P03 -AE HP 580230-001 Rev A UL E 231557 DC12V 0.40A 4.8W 2.54mm
Pitch
4-Pin 4-Conductor PWM Connector
6-inch
Wire SKU 101155
- Manufacturer:
Foxconn Technology
Co., Ltd.
- Brand: or
Distributor: Foxconn / HP
- Model:
- Foxconn
PVA092G12H -P03 -AE UL E 231557
- HP 580230-001
Rev A
- Features.:
- Design: DC Brushless
Cooling Fan
- Size: 92x92x25mm
- Power Rating:
DC12V 0.40A 4.8W
- Bearing: Sleeve Bearing
- Speed: 900 ~
3600 RPM +/- 5%
- Air Flow: 22
~ 61 CFM
- Noise Level: 11
~ 32 dB(A)
- Connector:
2.54mm Pitch 4-Pin 4-Conductor PWM Connector
- Wire Length:
6-inch
- Weight: 3.6 oz
(estimated shipping weight 8 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For parts or not working, As-Is. Not eligible for return or refund
- SKU ______O -
Open Box Unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
with
signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Reused Box and Plastic Bag.
- For used with
or pulled from:
(for reference only)
- PVA092G12H is
used in a wide
range of HP Compaq and HP Elite business desktop computers,
The
'-P03' is a revision or configuration code refers to a specific
combination of wire length , connector type, and PWM speed profile
requested by HP. '-AE' is a sub-revision or regional identifier to
ensure the part matches the exact electrical and physical
requirements for a specific batch of computer chassis.
- HP Elite Series -
8000, 8100, 8200 and 8300.
- HP Compaq Pro Series -
6000, 6005, 6200, 6300, and 6350.
- HP Compaq Elite 8100
Minitower
- HP Compaq 6000 Pro SFF
- HP 8200 Elite
Microtower
- Serial Number
Available or Sold:
|
