Features:

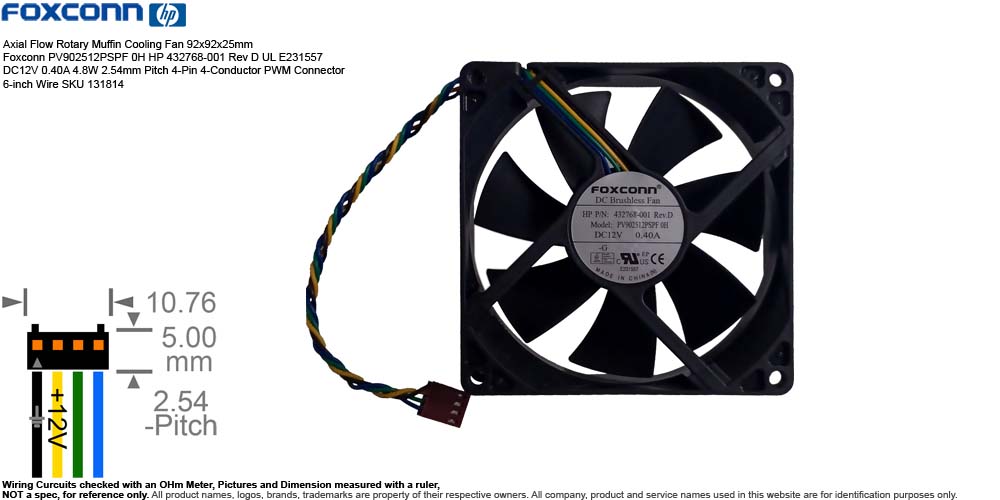

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Foxconn PV902512PSPF 0H -G HP 432768-001 Rev D UL E231557 DC12V 0.40A 4.8W 2.54mm Pitch 4-Pin 4-Conductor PWM Connector 6-inch Wire SKU 131814
• Manufacturer: Foxconn Technology Co., Ltd.
• Brand: or Distributor: Foxconn / HP Compaq
• Model:
  • Foxconn PV902512PSPF 0H -G
  • HP 432768-001 Rev D
  • UL E231557
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 92x92x25mm
  • Power Rating: DC 12V 0.4A 4.8W
  • Bearing: Dual Ball Bearing
  • Speed: 900~4000 RPM
  • Air Flow: 22~65 CFM
  • Noise Level: 28~45 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Wire Length: 6-inch
  • Connection: 2.54mm Pitch 4-Pin 4-Conductor PWM Connector
• Weight: 3.5 oz (estimated shipping weight 8 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • PV902512PSPF is a high-performance 92mm PWM cooling fan primarily used for CPU cooling or intensive chassis exhaust in business-grade systems like the HP Compaq Elite series. The '0H' specification code is a custom identifier that tells the manufacturer which wire length and connector type to use for a specific customer, in this case 0H is the designation for high-end legacy HP Workstations and Compaq Business Desktops.
  • Foxconn PV902512PSPF 0H -G HP 432768-001 Rev D Part Number Breakdown:
    • 'PV' Product Line, Foxconn's high-reliability DC brushless axial fan series.
    • '90' Frame Width, Nominal 90mm architecture class (92mm actual outer edge length).
    • '25' Frame Thickness, 25mm standard casing depth.
    • '12' Operating Voltage, Built for standard 12V DC power supply rails.
    • 'P' Power Classification, Medium-to-high current output tier rated at 0.40A (approx. 4.32 to 4.8 Watts).
    • 'S' Factory Speed Tier, High-velocity standard RPM baseline profile.
    • 'P' Control Circuit, PWM (Pulse Width Modulation) speed regulation capable.
    • 'F' Sensor Function, Integrated tachometer signal output wire for system BIOS RPM tracking.
    • '0H' Tail CodeRevision modifier mapping to HP custom wire harnesses or plastic shrouds.
    • '-G' Environmental Code Designates Green/RoHS compliant construction materials (lead-free manufacturing).
    • Photos are representative of the model and specifications you will receive; however, HP frequently assigns multiple different Part Numbers (PNs) and Spare Part Numbers (SPS) to the exact same physical part referred to as "Functional Equivalents," "Substitutes," or "Cross-References.
      • 'HP 432768-001 Rev D' designates the official spare part stocked by HP to service warranty claims and system repairs.
  • Pulled from HP Z400 WorkStation
  • Serial Numbers Available or Sold:
    • SN 0092011 Used
    • SN 0111658 Used
