Features:

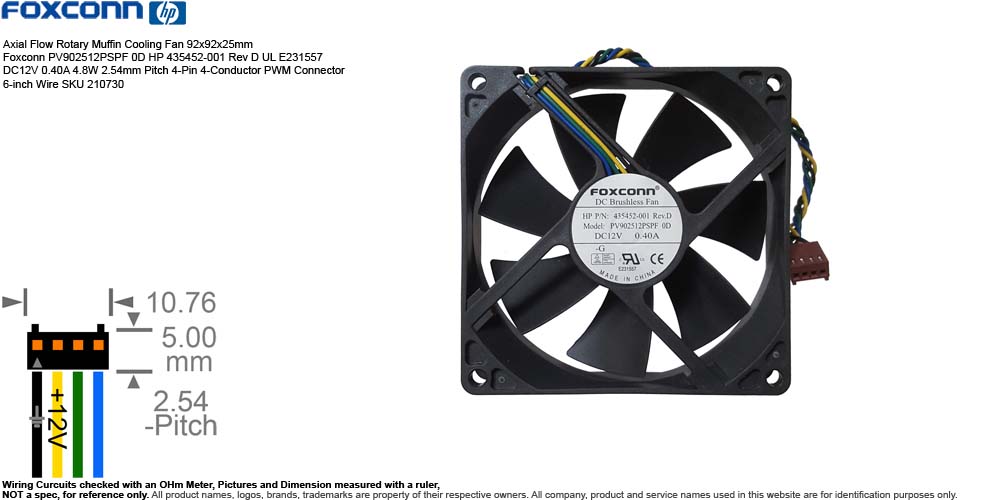

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Foxconn PV902512PSPF 0D HP 435452-001 Rev D UL E231557 DC12V 0.40A 4.8W 2.54mm Pitch 4-Pin 4-Conductor PWM Connector 6-inch Wire SKU 210730
• Manufacturer: Foxconn
• Brand: or Distributor: HP
• Model:
  • Foxconn PV902512PSPF 0D
  • HP PN 435452-001 Rev. D
  • UL E231557
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 92x92x25mm
  • Power Rating: DC 12V 0.4A 4.8W
  • Bearing: Dual Ball Bearing
  • Speed: 900~3600 RPM
  • Air Flow: 22~61 CFM
  • Noise Level: 28~45 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Wire Length: 6-inch
  • Connection: 2.54mm Pitch 4-Pin 4-Conductor PWM Connector
• Weight: 3.5 oz (estimated shipping weight 8 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • Foxconn PV902512PSPF 0D is a high-performance 92mm PWM cooling fan primarily used for CPU cooling or intensive chassis exhaust in business-grade systems like the HP Compaq Elite series. The '0D' specification code is a custom identifier that tells the manufacturer which wire length and connector type to use for a specific customer, in this case 0D is the designation for HP Compaq dc7700 or 8000 series desktops.
  • Foxconn PV902512PSPF 0D -G EP HP 435452-001 Rev D Part Number Breakdown:
    • 'PV' Product Line, Foxconn's high-reliability DC brushless axial fan series.
    • '90' Frame Width, Nominal 90mm architecture class (92mm actual outer edge length).
    • '25' Frame Thickness, 25mm standard casing depth.
    • '12' Operating Voltage, Built for standard 12V DC power supply rails.
    • 'P' Power Classification, Medium-to-high current output tier rated at 0.40A (approx. 4.32 to 4.8 Watts).
    • 'S' Factory Speed Tier, High-velocity standard RPM baseline profile.
    • 'P' Control Circuit, PWM (Pulse Width Modulation) speed regulation capable.
    • 'F' Sensor Function, Integrated tachometer signal output wire for system BIOS RPM tracking.
    • '0D' Tail CodeRevision modifier mapping to HP custom wire harnesses or plastic shrouds.
    • '-G' Environmental Code Designates Green/RoHS compliant construction materials (lead-free manufacturing).
    • Photos are representative of the model and specifications you will receive; however,
      • The exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
        • 'EP' Plant/Process Code, Internal Foxconn manufacturing plant, line location, or targeted sub-vendor circuit verification identifier.
      • HP frequently assigns multiple different Part Numbers (PNs) and Spare Part Numbers (SPS) to the exact same physical part referred to as "Functional Equivalents," "Substitutes," or "Cross-References.
        • 'HP 435452-001 Rev D' Optimized specifically for HP Compaq Small Form Factor (SFF) and Microtower (MT) systems, including the HP Elite 8000/8200 series and Compaq DC7600/DC7700 models.
  • Pulled from:
    • HP Compaq dc5800 Midtower
    • HP Compaq dc7800 Small Form Factor PC
  • Serial Numbers Available or Sold:
    • SN: 0089111 Used
    • SN: 0089112 Used
    • SN: 0090705 Used
    • SN: 0092010 Used
