Features:

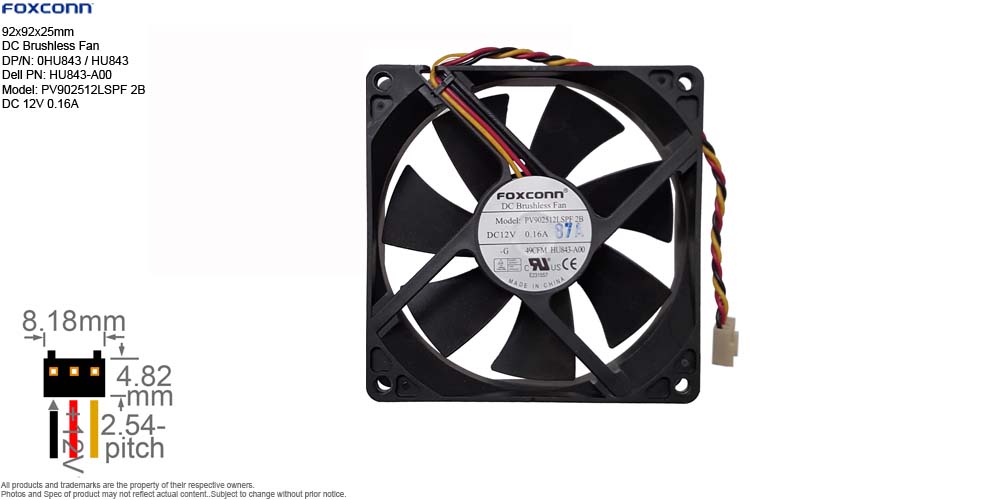

• Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Foxconn PV902512LSPF 2B Dell HU843-A00 DPN 0HU843-A00 UL E231557 DC12V 0.16A 1.92W 2.54mm Pitch 3-Pin 3-Conductor Connector 5.5-inch Wire SKU 220810
• Manufacturer: Foxconn Technology Co., Ltd.
• Brand or Distributor: Foxconn / Dell
• Model:
  • Foxconn PV902512LSPF 2B
  • Dell HU843-A00
  • DPN 0HU843-A00
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 92x92x25mm
  • Power Rating: DC12V 0.16A 1.92W
  • Bearing: Sleeve Bearing
  • Speed: 2500 RPM
  • Air Flow: 49 CFM
  • Noise Level: 19 dB(A)
  • Wire Length: 5.5-inch
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
• Weight: 3.4 oz (Estimated Shipping Weight 8 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • PV902512LSPF 2B is a low-power 92mm cooling fan designed for quiet operation and longevity. 'S' generally refer to a Sealed or Sleeve bearing system. 'P' stands for PWM (Pulse Width Modulation) or Performance-rated electronics allows the BIOS to monitor the Tachometer (speed) signal. 'F' indicates the Frame type signifying the standard 25mm thick plastic housing with open corners for screw mounting. '2' refers to the cable length roughly 6-inch and the connector style . 'B' is the revision level of the electronics to ensure the fan starts at a specific low voltage typically 5V or 7V to avoid 'Fan Failure' errors when the PC first wakes up from sleep or boots from a cold start.
  • Primarily used as a chassis exhaust fan for mid-tower and slim desktops from the mid-to-late 2000s designed for systems that require quiet, low-current cooling.
