Features:

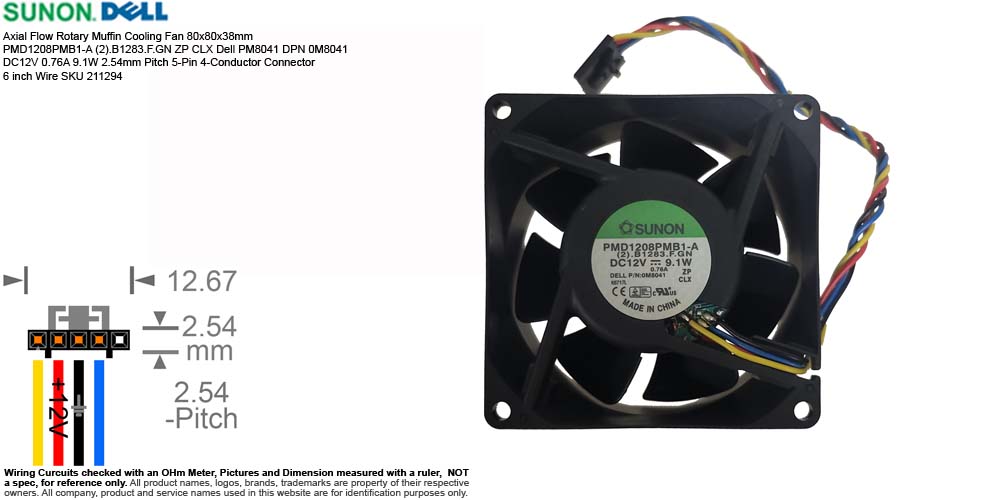

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x38mm PMD1208PMB1-A (2).B1283.F.GN ZP CLX Dell PM8041 DPN 0M8041 DC12V 0.76A 9.1W 2.54mm Pitch 5-Pin 4-Conductor Connector 6 inch Wire SKU 211294
• Manufacturer: Sunon
• Brand or Distributor: Sunon / Dell
• Model Number:
  • Sunon PMD1208PMB1-A (2).B1283.F.GN ZP CLX
  • Dell M8041
  • DPN 0M8041
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x38mm
  • Power Rating: DC12V 0.76A 9.1W
  • Bearing: Dual Ball Bearing
  • Speed: 5700 RPM +/- 10%
  • Air Flow: 84.1 CFM
  • Noise Level: 55.2 dBA
  • Material:
    • Frame Housing: PBT Plastic (Polybutylene Terephthalate) reinforced with 30% glass fiber to prevent thermal warpage under high static pressure.
    • Impeller Blades: PBT Plastic matching the housing material, structurally rated to withstand centripetal forces without bending.
  • Connection: 2.54mm Pitch 5-Pin 4-Conductor Connector
  • Wire Length: 6-inch
• Weight: 6.3 oz (estimated shipping weight 10 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-retail packaging, in unprinted box or plastic bag.
• For use with or pulled from: (for reference only)
  • Sunon PMD1208PMB1-A (2).B1283.F.GN ZP CLX is a highly specialized 12V high-performance industrial DC brushless axial cooling fan, primarily engineered for enterprise-grade servers, telecom equipment, network switches, and heavy-duty industrial machinery.
    • 'PMD' the fan series (High-power, premium DC motor)
    • '12' operates on a 12V DC nominal voltage.
    • '08' frame size width and height 80mm x 80mm.
    • 'P' frame thickness / depth code 38mm thick.
    • 'M' motor power rating code (Medium/High power range).
    • 'B1' Features a Dual Ball Bearing system and represents Sunon's highest relative speed profile (High Speed)
    • '-A' design generation indicator.
    • '(2)' Sunon internal frame or motor pole configuration code.
    • '.B1283' is a proprietary internal manufacturer sub-code designating the exact project number or manufacturing customer specification block.
    • '.F' equipped with a Third-Wire Frequency Generator / Tachometer output (sends an RPM signal back to the motherboard or server panel to track fan speeds)
    • '.GN' stands for 'Green Mark' indicating that the product is fully compliant with the global RoHS environment standard.
    • 'Z' Impedance Protected (Auto-Restart) indicates an inherent electrical safety design. If the fan blades become physically blocked or jammed (a locked rotor state), the internal coil impedance limits the current flow. This prevents the motor from overheating, melting its PBT plastic frame, or catching fire, even if power remains connected
    • 'P' Environment Compliance (Protection Class) designates a specific material or build standard—frequently corresponding to Lead-Free / RoHS conformity or localized environmental ingress protections (such as specialized dust or moisture repellency) required by industrial clients.
    • 'CLX' Hardware lines tagged with "CLX" (Non-PWM Control Limits) feature internal motor circuitry that is structurally different from generic "KEEN" or standard consumer lines. Because of these internal components, CLX fans stall easily under standard Pulse Width Modulation (PWM) duty cycle reductions and are meant to run primarily at fixed voltages.
  • Pulled from
    • Dell Optiplex 390 Computer.
    • Dell Optiplex 740 Computer.
  • Serial Number Available or Sold:
    • CN-0M8041-60362-67N-0970 Used
    • CN-0M8041-60362-851-0242 Used
