Features:

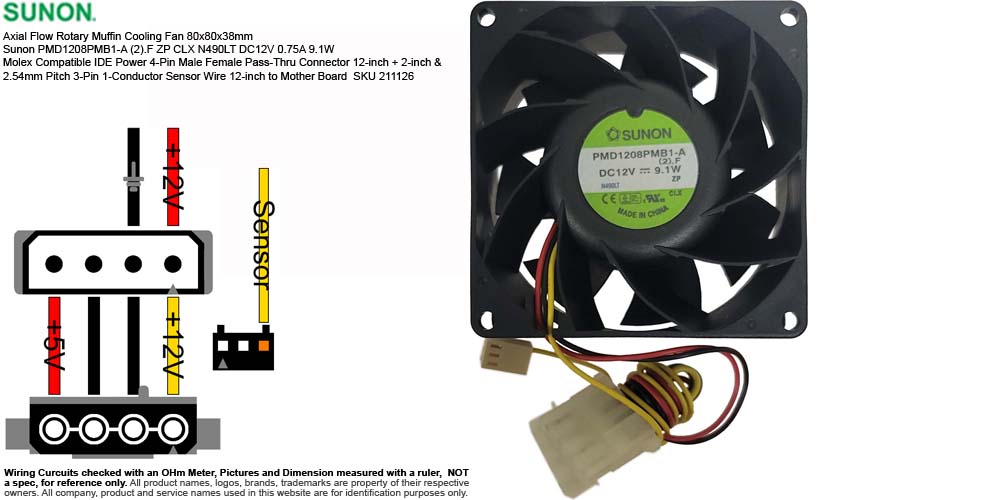

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x38mm Sunon PMD1208PMB1-A (2).F ZP CLX N490LT DC12V 0.75A 9.1W Molex Compatible IDE Power 4-Pin Male Female Pass-Thru Connector 12-inch + 2-inch & 2.54mm Pitch 3-Pin 1-Conductor Sensor Wire 12-inch to Mother Board SKU 211127
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • Sunon PMD1208PMB1-A (2).F ZP CLX N490LT
• Brief Spec.:
  • Design: DC Brushless Fan
  • Size: 80x80x38mm
  • Power Rating: DC12V 0.75A 9.1W
  • Bearing: Dual Ball Bearing
  • Speed: 5700 RPM +/- 10%
  • Air Flow: 84.1 CFM
  • Noise Level: 55.2 dB(A)
  • Material: PBT Plastic (Polybutylene Terephthalate)
  • Connector:
    • 2.54mm Pitch 3-Pin 1-Conductor Connector 12-inch Sensor Wire 12-inch
    • Molex IDE 4-Pin Power Male Female Pass-Thru 12-inch+ 2-inch Power Wire 12-inch + 2-inch
• Weight: 6.6 oz (estimated shipping weight 11 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused display sample, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Original Vantec Retail Package
• For use with or pulled from: (for reference only)
  • Sunon PMD1208PMB1-A (2).F ZP CLX N490LT
    • 'PMD' the fan series (High-power, premium DC motor)
    • '12' operates on a 12V DC nominal voltage.
    • '08' frame size width and height 80mm x 80mm.
    • 'P' frame thickness / depth code 38mm thick.
    • 'M' motor power rating code (Medium/High power range).
    • 'B1' Features a Dual Ball Bearing system and represents Sunon's highest relative speed profile (High Speed)
    • '-A' design generation indicator.
    • '(2)' Sunon internal frame or motor pole configuration code.
    • '.F' equipped with a Third-Wire Frequency Generator / Tachometer output (sends an RPM signal back to the motherboard or server panel to track fan speeds)
    • 'ZP CLX' Custom OEM suffix indicating specific wiring lengths, connectors, or impedance protection markers unique to the batch.
    • 'N490LT' is the internal manufacturing lot and date code used for assembly tracking, quality control, and warranty verification.
  • Serial Number Available or Sold:
    • SN 0091128 Unused Display Sample
