Features:

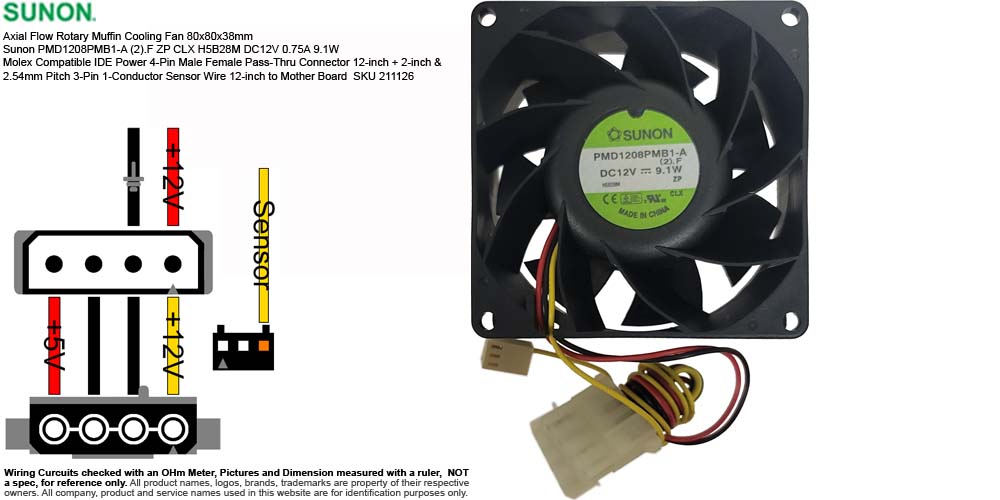

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x38mm Sunon PMD1208PMB1-A (2).F ZP CLX H5B28M DC12V 0.75A 9.1W Molex Compatible IDE Power 4-Pin Male Female Pass-Thru Connector 12-inch + 2-inch & 2.54mm Pitch 3-Pin 1-Conductor Sensor Wire 12-inch to Mother Board SKU 211126
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • Sunon PMD1208PMB1-A (2).F ZP CLX H5B28M
• Brief Spec.:
  • Design: DC Brushless Fan
  • Size: 80x80x38mm
  • Power Rating: DC12V 0.75A 9.1W
  • Bearing: Dual Ball Bearing
  • Speed: 5700 RPM +/- 10%
  • Air Flow: 84.1 CFM
  • Noise Level: 55.2 dB(A)
  • Material: PBT Plastic (Polybutylene Terephthalate)
  • Connector:
    • 2.54mm Pitch 3-Pin 1-Conductor Connector 12-inch Sensor Wire 12-inch
    • Molex IDE 4-Pin Power Male Female Pass-Thru 12-inch+ 2-inch Power Wire 12-inch + 2-inch
• Weight: 6.6 oz (estimated shipping weight 11 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused display sample, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Original Vantec Retail Package
• For use with or pulled from: (for reference only)
  • Sunon PMD1208PMB1-A (2).F ZP CLX H5B28M
    • 'PMD' the fan series (High-power, premium DC motor)
    • '12' operates on a 12V DC nominal voltage.
    • '08' frame size width and height 80mm x 80mm.
    • 'P' frame thickness / depth code 38mm thick.
    • 'M' motor power rating code (Medium/High power range).
    • 'B1' Features a Dual Ball Bearing system and represents Sunon's highest relative speed profile (High Speed)
    • '-A' design generation indicator.
    • '(2)' Sunon internal frame or motor pole configuration code.
    • '.F' equipped with a Third-Wire Frequency Generator / Tachometer output (sends an RPM signal back to the motherboard or server panel to track fan speeds)
    • 'Z' Impedance Protected (Auto-Restart) indicates an inherent electrical safety design. If the fan blades become physically blocked or jammed (a locked rotor state), the internal coil impedance limits the current flow. This prevents the motor from overheating, melting its PBT plastic frame, or catching fire, even if power remains connected
    • 'P' Environment Compliance (Protection Class) designates a specific material or build standard—frequently corresponding to Lead-Free / RoHS conformity or localized environmental ingress protections (such as specialized dust or moisture repellency) required by industrial clients.
    • 'CLX' Hardware lines tagged with "CLX" (Non-PWM Control Limits) feature internal motor circuitry that is structurally different from generic "KEEN" or standard consumer lines. Because of these internal components, CLX fans stall easily under standard Pulse Width Modulation (PWM) duty cycle reductions and are meant to run primarily at fixed voltages.
    • 'H5B28M' is the internal manufacturing lot and date code used for assembly tracking, quality control, and warranty verification.
  • Serial Number Available or Sold:
    • SN 0091126 Unused Display Sample
    • SN 0091127 Unused Display Sample
