Features:

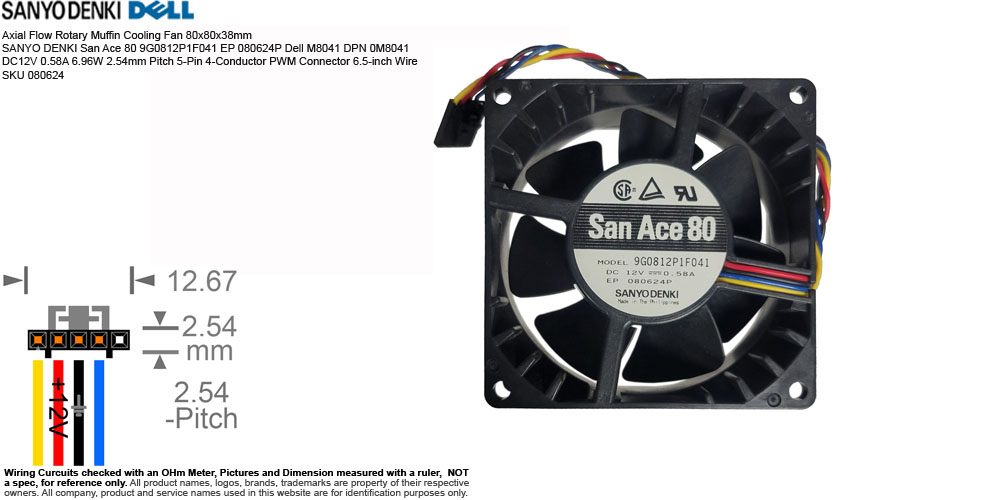

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x38mm SANYO DENKI San Ace 80 9G0812P1F041 EP 080624P Dell M8041 DPN 0M8041 DC12V 0.58A 6.96W 2.54mm Pitch 5-Pin 4-Conductor PWM Connector 6.5-inch Wire SKU 080624
• Manufacturer: Sanyo Denki
• Brand or Distributor: Sanyo Denki / Dell
• Model Number:
  • Sanyo Denki San Ace 80 9G0812P1F041 EP 080624P
  • Dell PN M8041
  • DPN 0M8041
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x38mm
  • Power Rating: DC12V 0.58A 6.96W
  • Bearing: Dual Ball Bearing
  • Speed: 1500~5500 RPM under active PWM control
  • Air Flow:
    • 15.1CFM 20%PWM duty cycle (Minimum Floor)
    • 35.5 CFM 50% PWM duty cycle (Mid Range Curve)
    • 51.2 CFM 80% PWM duty cycle (High Demand Threshold)
    • 63.69 CFM 100% PWM duty cycle (Maximum Ceiling)
  • Noise Level: 18 dB(A) idle / 50 dBA full load
  • Connection: 2.54mm Pitch 5-Pin 4-Conductor PWM Connector
  • Wire Length: 6.5-inch
• Weight: 5.6 oz (estimated shipping weight 9 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Sanyo Denki San Ace 80 9G0812P1F041 EP 080624P is an industrial-grade high-static-pressure cooling fan bundled under Dell Part Number 0M8041 (M8041) primarily used as a direct factory replacement fan for enterprise-class Dell servers and high-density workstations
    • '9G' Sanyo Denki high-airflow, standard-reliability series.
    • '08' 80mm frame width.
    • '12' 12-Volt electrical system.
    • 'P' Integrated PWM speed control function.
    • '1' 38mm frame thickness.
    • 'F' Specific internal factory speed tuning tier.
    • '41' Internal customization code designating the specialized Dell proprietary connector and cable assembly.
    • 'EP' indicate the specific Sanyo Denki factory, production branch, or internal component tracking code used during assembly
    • '080624' is the standard YYMMDD (Year-Month-Day) structure used across electronic component manufacturing.
    • 'P' is an internal production shift, batch number, or compliance code (often denoting lead-free/RoHS production lines).
  • Serial Number Available or Sold:
    • SN 0090846 PH-0M8041-48101-68O-1365 Used
