Link(s): Yate Loon D80_Series Line Card

Features:

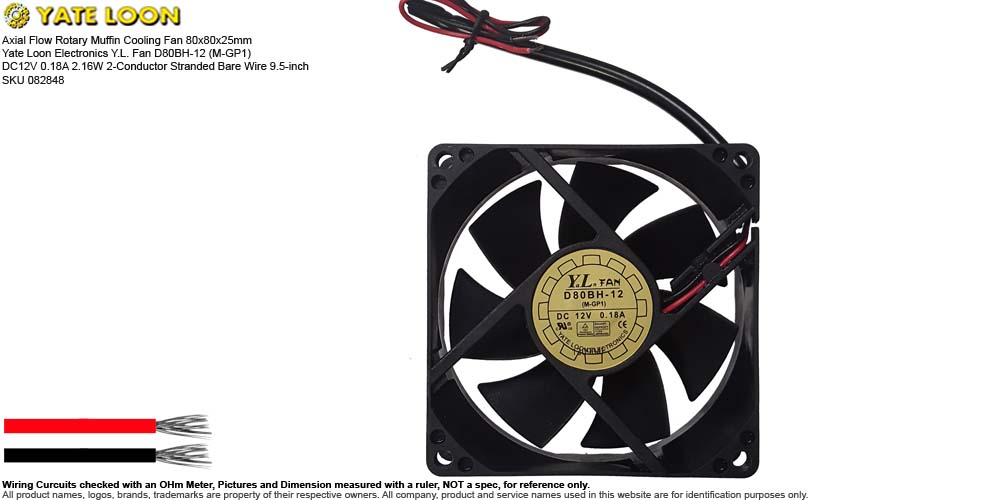

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Yate Loon Electronics Y.L. Fan D80BH-12 (M-GP1) DC12V 0.18A 2.16W 2-Conductor Stranded Bare Wire 9.5-inch SKU 082848
• Manufacturer: Yate Loon Electronics Co., Ltd.
• Brand or Distributor:  Y.L. Fan / Yate Loon
• Model:
  • D80BH-12 (M-GP1)
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.24A 2.88W
  • Bearing: Double Ball Bearing
  • Speed: 2700 RPM
  • Air Flow: 34 CFM
  • Noise Level: 35 dB(A)
  • Material: Reinforced black thermoplastic UL94V-0 flammability standards
    • Frame Housing: Reinforced black thermoplastic, built to UL 94V-0 flammability standards.
    • Impeller Blades: Seven-blade high-velocity plastic impeller, designed to maximize static pressure
  • Connection: 2-Conductor Stranded Bare Wire
  • Wire Length: 9.5-inch
  • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
• Weight: 2.2 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unsold ATX Power Supply, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Yate Loon Electronics D80BH-12 (M-GP1) is a high-performance, industrial-grade 80mm x 80mm x 25mm DC axial cooling fan operating at 12V. It features a dual ball bearing mechanism, spinning up to a maximum rotational speed of 2700 RPM to generate an airflow volume of 34.0 CFM at a noise level of 35.0 dBA.
  • D80BH-12 (M-GP1) Part Number Breakdown:
    • 'D' Identifies the motor type as a DC Brushless Fan.
    • '80' Denotes the frame dimensions, measuring 80mm x 80mm.
    • 'B' Specifies a Ball Bearing assembly (as opposed to "S" for Sleeve).
    • 'H' Signifies a High-Speed / High-Output configuration.
    • '-12' Indicates the required operating voltage of 12 Volts DC.
    • '(M-GP1)' Factory batch code denoting the specific 0.18A power draw variant.
  • Pulled from SPI (Sparkle Power) Computer Power Supply
  • Serial Number Available or Sold:
    • SN 0082848 Used
