Features:

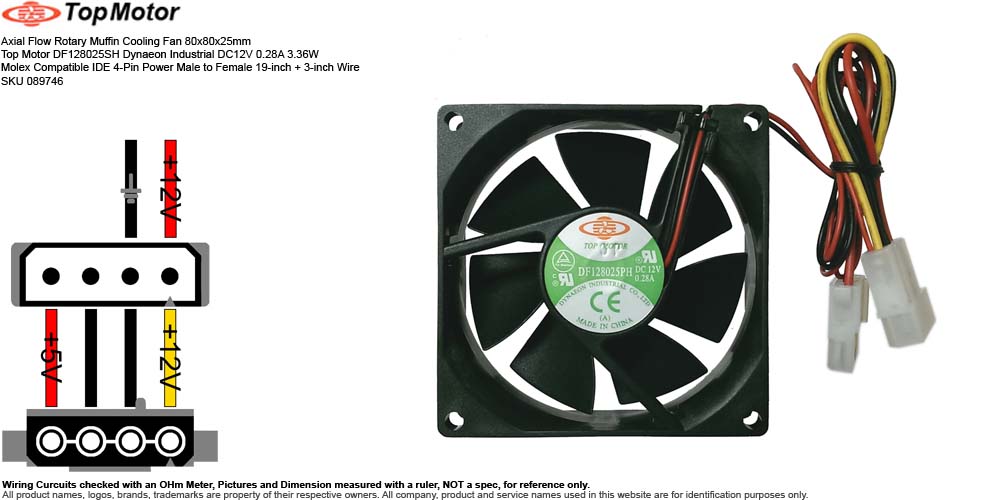

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Top Motor DF128025SH Dynaeon Industrial DC12V 0.28A 3.36W Molex Compatible IDE 4-Pin Power Male to Female 19-inch + 3-inch Wire SKU 089746
• Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
• Brand and Distributor:
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model: (Compatible, Equivalent, & Interchangeable)
  • DF1208PH
  • DF128025PH
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.28A 3.36W
  • Bearing: Dual Ball Bearing
  • Speed: 3400~3500 RPM
  • Air Flow: 41~45 CFM
  • Noise Level: 38~39 dB(A)
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: Molex Compatible IDE 4-Pin Power Male to Female
  • Overall Wire Length: 22-inch
    • 19-inch: from Fan to 4-pin Male Connector
    • 3-inch: from 4-pin Male Connector to 4-pin Female Connector
  • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
• Weight: 2.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Top Motor DF1208PH and DF128025PH are the exact same 80mm cooling fan designed as a High-amp high-torque brushless DC motor, integrated reverse polarity protection, auto-restart capabilities, and a heavy-duty physical build optimized for maximum static pressure for High-density enterprise servers, high-wattage power supplies (PSUs), networking equipment rack switches, industrial control cabinets, and aggressive PC gaming chassis exhaust systems.
  • DF128025PH Part Number Breakdown:
    • 'D' DC (Direct Current)
    • 'F' Fan
    • '12' 12V DC operating voltage.
    • '80' 80mm width × 80mm height.
    • '25' 25mm thickness.
    • 'P' Internal Mechanical Format Two-Ball Bearing System.
    • 'H' Factory Tuning Category High Speed output tier.
  • Serial Number Available or Sold:
    • SN 0089701~0089800 New
