Features:

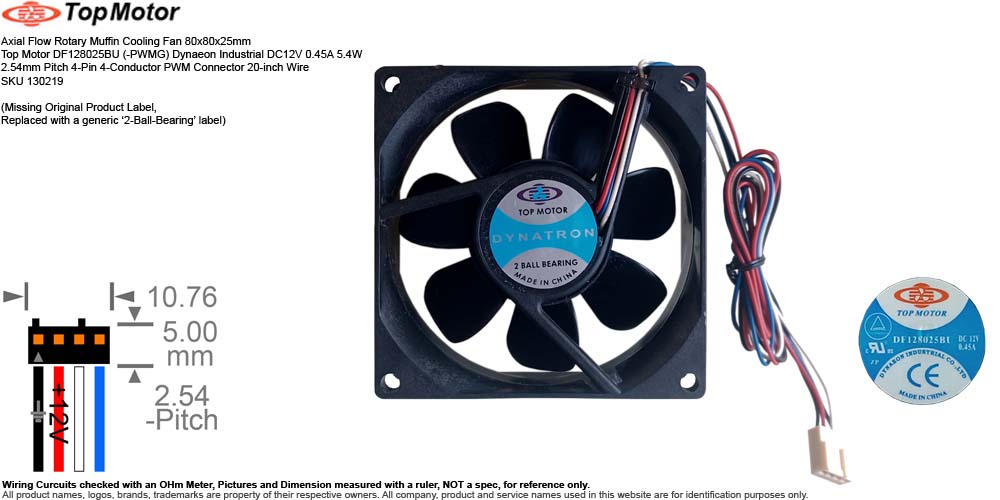

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Top Motor DF128025BU (-PWMG) Dynaeon Industrial DC12V 0.45A 5.4W 2.54mm Pitch 4-Pin 4-Conductor PWM Connector 20-inch Wire SKU 130219
• Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
• Brand and Distributor:
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model: (Compatible, Equivalent, & Interchangeable)
  • DF1208BU (-PWMG)
  • DF128025BU (-PWMG) (missing original product Label 'DF128025BU'', replaced with a Top Motor generic '2 BALL BEARING' Label)
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.45A 5.4W
  • Bearing: Dual Ball Bearing
  • Speed: 4000 RPM
  • Air Flow: 48.5 CFM
  • Noise Level: 40.9 dB(A)
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: 2.54mm Pitch 4-Pin 4-Conductor PWM Connector
  • Overall Wire Length: 20-inch
    • 19-inch: from Fan to 4-pin Male Connector
    • 3-inch: from 4-pin Male Connector to 4-pin Female Connector
  • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
• Weight: 2.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused Show Room Sample, missing original product label 'DF128025BU'', replaced with a Top Motor generic '2 BALL BEARING' Label.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Top Motor DF1208BU (-PWMG) and DF128025BU (-PWMG) are the exact same 80mm cooling fan designed as a Ultra-high speed 0.45A brushless motor coil, dynamic speed control via Pulse-Width Modulation (on -PWMG models), automatic polarity reversal protection, and high-torque static pressure for 2U/4U server rack chassis, industrial network switch blades, external high-density RAID storage arrays, enterprise power supplies (PSUs), and high-heat industrial automation panels. The presence of the -PWMG suffix simply indicates that the fan has been equipped with a 4-wire variable speed control circuit.
  • DF1208BU / DF128025BU Part Number Breakdown:
    • 'D' DC (Direct Current)
    • 'F' Fan
    • '12' 12V DC operating voltage.
    • '08' 80mm width × 80mm height x 25mm thickness.
    • '8025' 80mm width × 80mm height x 25mm thickness.
    • 'B' Internal Mechanical Format Two-Ball Bearing System.
    • 'U' Factory Tuning Category Ultra-High Speed output tier.
  • Serial Number Available or Sold:
    • SN 0089401 Open Box
