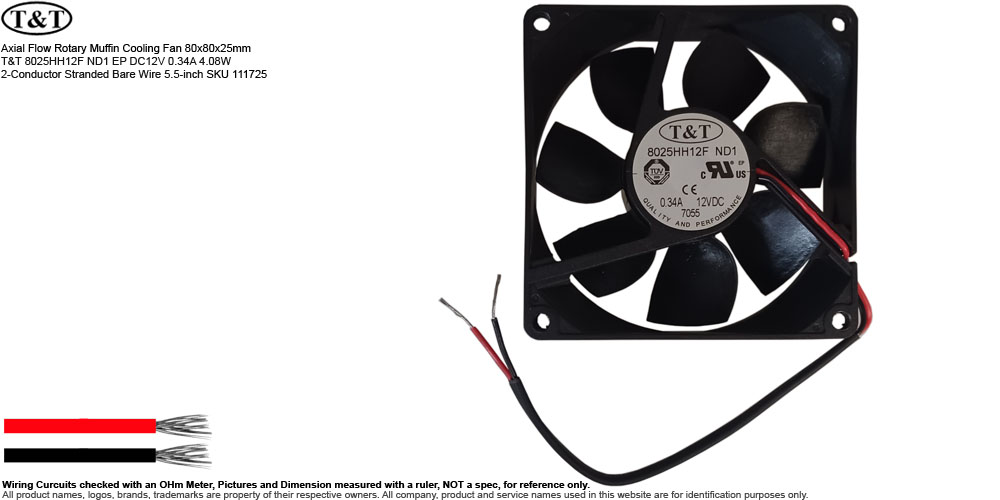

Axial Flow Rotary Muffin Cooling Fan 80x80x25mm
T&T 8025HH12F ND1 EP DC12V 0.34A 4.08W
2-Conductor Stranded Bare Wire 5.5-inch
SKU 111725
FN-8025-xxx

Features:

  • Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm T&T 8025HH12F ND1 EP DC12V 0.34A 4.08W 2-Conductor Stranded Bare Wire 5.5-inch SKU 111725
  • Manufacturer: Top & Tech / T&T Fan Electronics / T&T Moton
  • Brand or Distributor: T&T
  • Model: (Compatible, Equivalent, & Interchangeable)
    • T&T 8025HH12F ND1 EP
  • Brief Spec.:
    • Design: DC Brushless Fan
    • Fan Size: 80x80x25mm
    • Power Rating: DC12V 0.34A 4.08W
    • Bearing: Fluid Dynamic / Advanced Sleeve Bearing
    • Speed: 3400~3800 RPM
    • Air Flow: 38~44 CFM
    • Noise Level: 38~43 dB(A)
    • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
      • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
      • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Connection: 2-Conductor Stranded Bare Wire
    • Overall Wire Length: 5.5-inch
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
  • Weight: 2.2 oz (estimated shipping weight 7 oz)
  • Condition: (Subject to Availability)
    • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
    • SKU ______N - New
    • SKU ______B - Bulk New, seller repackaged.
    • SKU ______E - Excess Inventory, not been used, may have signs of age.
    • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
    • SKU ______O - Open Box, may have signs of cosmetic wear.
    • SKU ______R - Refurbished to working condition.
    • SKU ______U - Used, may have signs of cosmetic wear.
  • Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
  • For used with or pulled from: (for reference only)
    • The T&T 8025HH12F ND1 EP is a high-performance, 12V DC industrial brushless cooling fan. It features an 80mm square design and draws a substantial 0.34A of current, categorizing it as a high-airflow axial "muffin" fan typically deployed in harsh industrial environments or dense computing hardware. Due to its high static pressure and reliability under heavy workloads, this fan is found in ABB Robot Controllers and industrial automation, Network server racks and telecom enclosures cabinets, Uninterruptible Power Supplies (UPS) and large industrial power inverters.
    • T&T 8025HH12F ND1 EP 7055 Part Number Breakdown:
      • '8025' Physical Size 80mm x 80mm width/height, 25mm thickness.
      • 'HH' Performance Level High-High Speed (signifies the highest RPM/amperage bracket for this chassis size).
      • '12' Input Voltage 12 Volts DC standard operating voltage.
      • 'F' Bearing Type Fluid Dynamic / Advanced Sleeve bearing mechanics.
      • 'ND1' Internal Design Code Manufacturer's internal mechanical revision or generation identifier.
      • 'EP' Certification Standard Environmental Protection / Exempted Product (RoHS compliance standard).
      • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
        • '7055' Production Batch Factory control batch lot number.
    • Serial Number Available or Sold:
      • Batch 7055, SN 0111725 Used
      • Batch 7473, SN 0113102 Used
