Features:

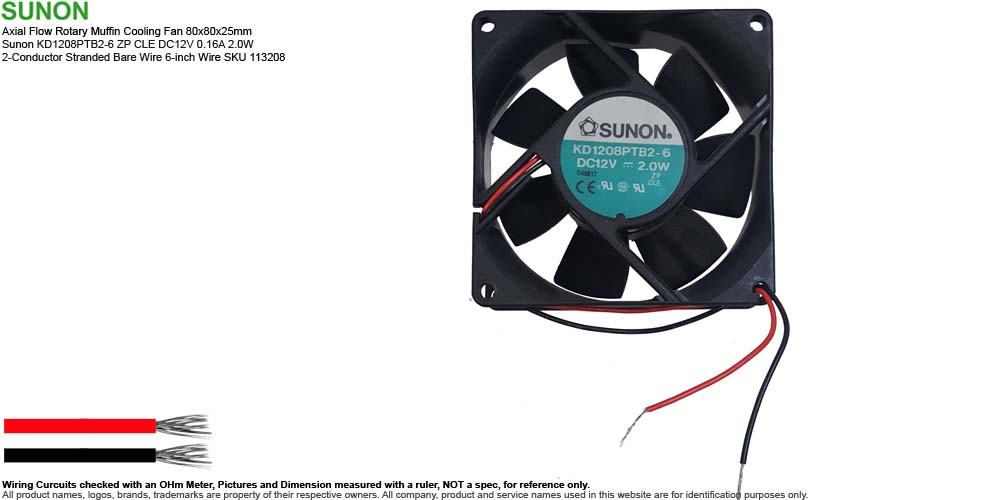

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Sunon KD1208PTB2-6 ZP CLE DC12V 0.16A 2.0W 2-Conductor Stranded Bare Wire 6-inch Wire SKU 113208
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • Sunon KD1208PTB2-6 ZP CLE
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.16A 2.0W
  • Bearing: Dual Ball Bearing
  • Speed: 2800~2900 RPM
  • Air Flow: 36~37 CFM
  • Noise Level: 32 dB(A)
  • Material: PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
    • Frame Housing: Polybutylene Terephthalate (PBT Plastic) reinforced with fiberglass, meeting the UL 94V-0 flammability safety rating
    • Impeller Blades: Companion high-rigidity PBT Plastic (UL 94V-0), dynamically balanced to minimize vibration.
  • Connection: 2-Conductor Stranded Bare Wire
  • Overall Wire Length: 6-inch
• Weight: 2.9 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from computer power supply, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon KD1208PTB2-6 ZP CLE is a specialized, industrial-grade 80mm DC axial cooling fan. It is engineered specifically for high-reliability applications that require continuous operation and high thermal resilience. Its design concentrates on high structural durability and reliable heat dissipation for dense mechanical setups. Its standardized 80mm x 80mm x 25mm "muffin fan" commonly used in Power Supply Units (PSUs), erver Chassis & RAID Arrays, Industrial Automation Panels, Legacy Enterprise Electronics.
  • KD1208PTB2-6 ZP CLE Part Number Breakdown:
    • 'KD' Fan Series DC Brushless Motor series.
    • '12' Voltage Rating 12 Volts DC operational rating.
    • '08' Frame Size 80mm width & height dimensions.
    • 'P' Frame Profile, Standard PBT plastic housing architecture.
    • 'T' Structural Design, Tube axial / Thru-vane housing style.
    • 'B' Bearing Type, Dual Ball Bearings for industrial continuous duty.
    • '2' Speed Profile, Medium Speed performance tier classification
    • '-6' Motor sub-generation revision code (Specifies the design branch optimized for a 2.0W / 0.16A power layout instead of the standard baseline 1.3W motor)
    • 'ZP' Impedance Protected (prevents the motor from burning out if the blades get physically blocked.
    • 'CLE' Specific lead wire assembly, housing connector style, or customer-specific terminal type.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'CH9817' Proprietary Customer Code / Control Number. This tracking string indicates that the fan was factory-customized for an enterprise client. For this exact suffix sequence, it designates a specialized 6-inch overall lead wire length.
  • Pulled from computer power supply
  • Serial Numbers Available or Sold:
    • Batch CH9817, SN 0113208 Used
