Features:

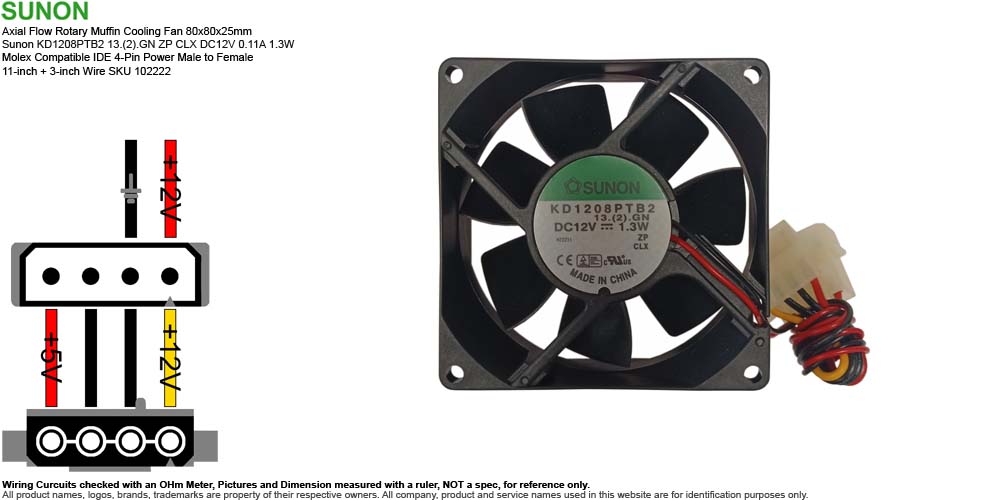

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Sunon KD1208PTB2 13.(2).GN ZP CLX DC12V 0.11A 1.3W Molex Compatible IDE 4-Pin Power Male to Female 11-inch + 3-inch Wire SKU 102222
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • Sunon KD1208PTB2 13.(2).GN ZP CLX
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.11A 1.3W
  • Bearing: Dual Ball Bearing
  • Speed: 2800~2900 RPM
  • Air Flow: 37~39 CFM
  • Noise Level: 32~39 dB(A)
  • Material: PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
    • Frame Housing: Polybutylene Terephthalate (PBT Plastic) reinforced with fiberglass, meeting the UL 94V-0 flammability safety rating
    • Impeller Blades: Companion high-rigidity PBT Plastic (UL 94V-0), dynamically balanced to minimize vibration.
  • Connection: Molex Compatible IDE 4-Pin Power Male to Female
  • Overall Wire Length: 14-inch
    • 11-inch: from Fan to 4-pin Male Connector
    • 3-inch: from 4-pin Male Connector to 4-pin Female Connector
• Weight: 2.9 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon KD1208PTB2 is designed exclusively as an industrial-grade, continuous-duty DC axial cooling fan. Its design concentrates on high structural durability and reliable heat dissipation for dense mechanical setups. Its standardized 80mm x 80mm x 25mm "muffin fan" commonly used in Legacy Desktop PCs & Servers, Industrial Machinery Controls, Networking Hardware, Commercial Equipment.
  • KD1208PTB2 13.(2).GN ZP CLX Part Number Breakdown:
    • 'KD' Fan Series DC Brushless Motor series.
    • '12' Voltage Rating 12 Volts DC operational rating.
    • '08' Frame Size 80mm width & height dimensions.
    • 'P' Frame Profile, Standard PBT plastic housing architecture.
    • 'T' Structural Design, Tube axial / Thru-vane housing style.
    • 'B' Bearing Type, Dual Ball Bearings for industrial continuous duty.
    • '2' Speed Profile, Medium Speed performance tier classification
    • '13' Motor specification or structural design revision code.
    • '(2)' Dual Ball Bearing designation.
    • 'GN' Green Product (RoHS compliant environmental certification).
    • 'ZP' Impedance Protected (prevents the motor from burning out if the blades get physically blocked.
    • 'CLX' Specific lead wire assembly, housing connector style, or customer-specific terminal type.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'H72211' is a proprietary Customer Code / Control Number used internally by Sunon to identify hardware customization
  • Serial Numbers Available or Sold:
    • Batch H71122, SN 0092076 New
    • Batch H71122, SN 0092077 New
    • Batch H71122, SN 0092078 New
    • Batch H71122, SN 0092079 New
    • Batch H71122, SN 0092080 New
