Features:

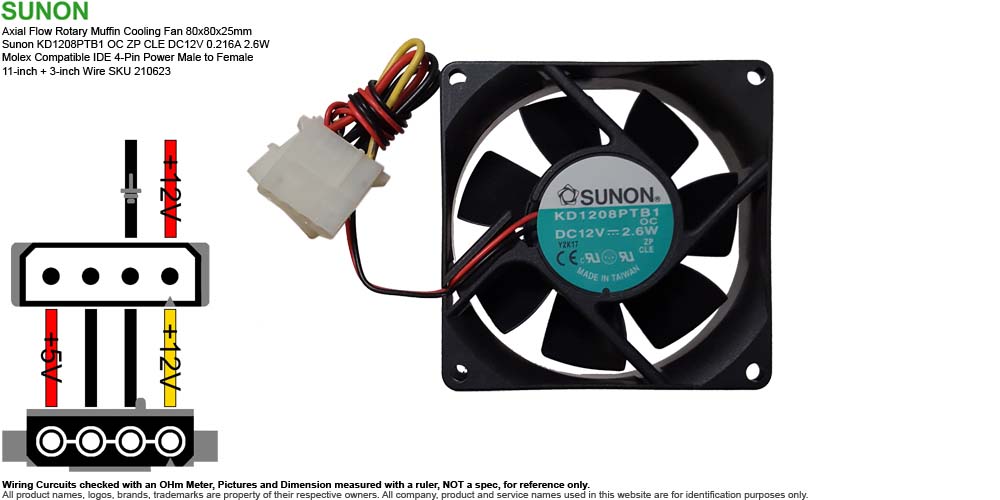

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Sunon KD1208PTB1 OC ZP CLE DC12V 0.216A 2.6W Molex Compatible IDE 4-Pin Power Male to Female 11-inch + 3-inch Wire SKU 210623
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • Sunon KD1208PTB1 OC ZP CLE
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.216A 2.6W
  • Bearing: Dual Ball Bearing
  • Speed: 3000~3100 RPM
  • Air Flow: 39.5~41 CFM
  • Noise Level: 33~35 dB(A)
  • Material: PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
    • Frame Housing: Polybutylene Terephthalate (PBT Plastic) reinforced with fiberglass, meeting the UL 94V-0 flammability safety rating
    • Impeller Blades: Companion high-rigidity PBT Plastic (UL 94V-0), dynamically balanced to minimize vibration.
  • Connection: Molex Compatible IDE 4-Pin Power Male to Female
  • Overall Wire Length: 14-inch
    • 11-inch: from Fan to 4-pin Male Connector
    • 3-inch: from 4-pin Male Connector to 4-pin Female Connector
• Weight: 3.7 oz (estimated shipping weight 8 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon KD1208PTB1 is an industrial-grade, high-performance DC axial cooling fan. The specifications and structural components for the exact OC ZP CLX variation is to deliver high-reliability thermal management for electronic enclosures, power supplies, and older desktop computer cases. Its dual ball bearing system makes it suitable for continuous, long-term operation in horizontal, vertical, or angled mounting orientations
  • KD1208PTB1 OC ZP CLE Part Number Breakdown:
    • 'KD' Fan Series DC Brushless Motor series.
    • '12' Voltage Rating 12 Volts DC operational rating.
    • '08' Frame Size 80mm width & height dimensions.
    • 'P' Frame Profile, Standard PBT plastic housing architecture.
    • 'T' Structural Design, Tube axial / Thru-vane housing style.
    • 'B' Bearing Type, Dual Ball Bearings for industrial continuous duty.
    • '1' Speed Profile, High Speed performance tier classification.
    • 'OC' Circuit Feature, Open Collector tachometer/sensor circuit design.
    • 'ZP' Protection Type, Impedance Protected configuration (coils won't burn up if rotor stalls).
    • 'CLX' Termination Spec, Custom production sub-suffix detailing the specific length of wire leads and terminal connector header layout.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'Y2K' Production Era, the "Y2K" prefix was commonly used by manufacturing plants around and after the year 2000 to designate parts engineered or tracked in the post-2000 database system.
      • '17' Revision / Batch, the "17" functions as a revision tracker or production run marker. On different variations of this exact same Sunon fan model, you will also see labels stamped with "Y2K22" or "Y2K14", depending on when that exact sub-batch was assembled
  • Pulled from unused computer cases.
  • Serial Number Available or Sold:
    • Batch Y2K17, SN 0110996 Used
    • Batch Y2K22, SN 0110921 Used
