Features Applications RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown:

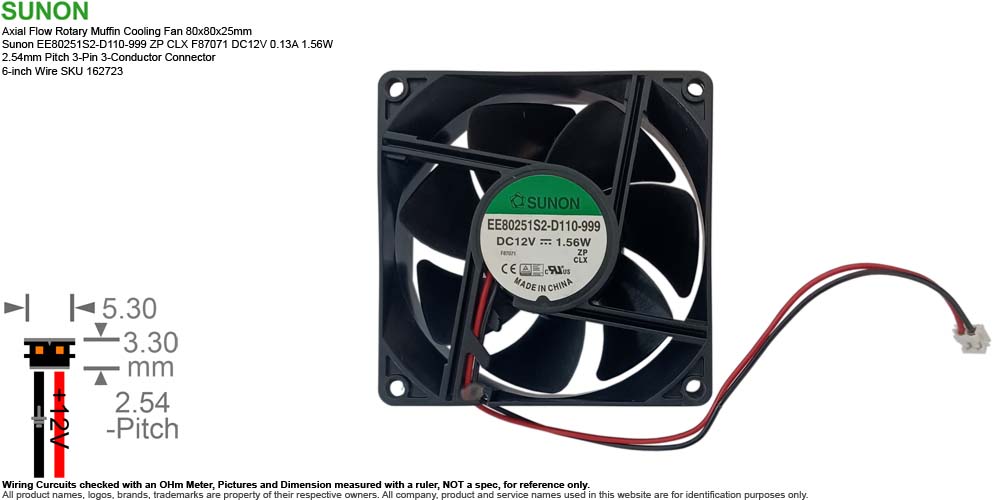

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Sunon EE80251S2-D110-999 ZP CLX F87071 DC12V 0.13A 1.56W 2.54mm Pitch 2-Pin 2-Conductor Connector 6-inch Wire SKU 162723
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • Sunon EE80251S2-D110-999 ZP CLX F87071
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.13A 1.56W
  • Bearing: Sleeve Bearing
  • Speed: 2900 RPM
  • Air Flow: 37 CFM
  • Noise Level: 30 dB(A)
  • Material: PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
    • Frame Housing:  PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
    • Impeller Blades:  PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Overall Wire Length: 6-inch
• Weight: 2.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from computer power supply, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon EE80251S2-D110-999 balances mid-range static pressure and decent airflow at a relatively low noise level, it is widely used in,
    • PC & Server Cooling: Computer chassis fans, power supplies (PSUs), and small server enclosures.
    • Industrial Automation: Cooling for control boxes, small electrical cabinets, and instrumentation.
    • Consumer Electronics: Home theater equipment, network routers/switches, and 3D printer enclosures.
  • EE80251S2-D110-999 ZP CLX F87071 Part Number Breakdown:
    • 'EE' Eco Series (Sunon's standard cost-effective DC brushless fan line)
    • '80' 80mm frame length/width
    • '25' 25mm frame thickness
    • '1' 12V DC operating voltage (where 1 = 12V, 2 = 24V, 3 = 48V, etc.)
    • 'S' Sleeve bearing system
    • '2' Medium-High speed rating (Sunon scales from X/1 as highest down to 3/4 as lowest)
    • 'D110' Customer/Design suffix. This designates a specific factory configuration, typically denoting a 2-wire setup with an explicit wire lead length or specific connector layout
    • '999' Standard Sunon code indicating standard open-lead configurations (no specific specialized OEM connector pins pre-attached)
    • 'ZP' Impedance Protected / Zone Protected. Indicates the motor has built-in electronic protection to prevent overheating or catching fire if the fan blades are physically locked or blocked
    • 'CLX' designated the fan is designed to run consistently at its target voltage (12V). If you try to artificially slow it down by drastically reducing the duty cycle via a standard PWM controller, the internal CLX control chip may prematurely stall or fail to restart smoothly at lower power inputs
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'F87071' factory date code and manufacturing batch identifier
  • Pulled from Dell power supply L290EM-01 0HYV3H Lite-On PS-3291-108
  • Serial Numbers Available or Sold:
    • Batch F87071, SN 0100079 Used
