Features:

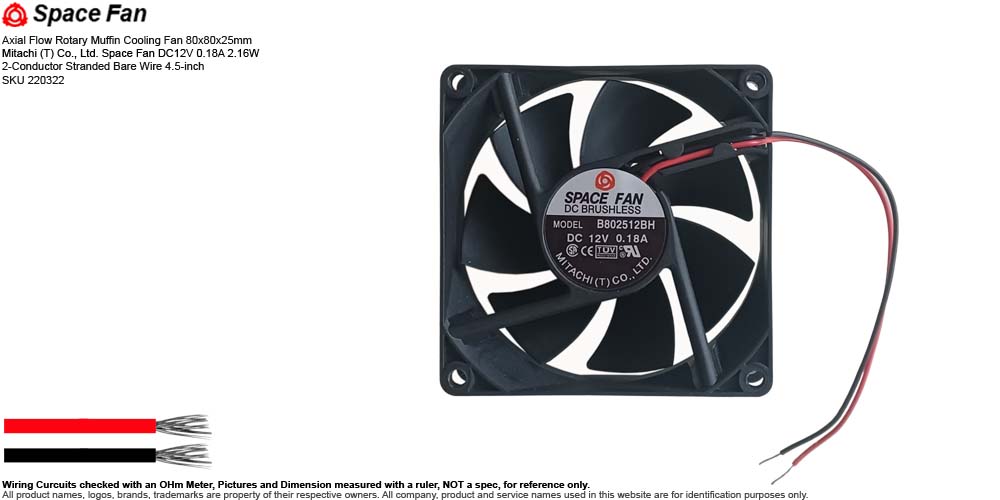

• Description: Axial Flow DC Brushless Rotary Muffin Cooling Fan 80x80x25mm Mitachi (T) Co., Ltd. Space Fan B802512BH DC12V 0.18A 2.16W 2-Conductor Stranded Bare Wire 4.5-inch SKU 220322
• Manufacturer: Mitachi (T) Co., Ltd.
• Brand: or Distributor: Space Fan
• Model:
  • B802512BH
  • Seller's SKU 220322
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.18A 2.16W
  • Bearing: Double Ball Bearing
  • Speed: 2600~3100 RPM
  • Air Flow: 32 CFM
  • Noise Level: 34 dB(A)
  • Material: Thermoplastic PBT typically UL94V-0 rated flame-retardant plastic
    • Frame Housing: Thermoplastic PBT typically UL94V-0 rated flame-retardant plastic
    • Impeller Blades: Thermoplastic PBT typically UL94V-0 rated flame-retardant plastic
  • Connection: 2-Conductor Stranded Bare Wire
  • Wire Length: 4.5-inch
  • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
• Weight: 2.2 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unsold ATX Power Supply, with signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Space Fan B802512BH is a high-performance, standard-sized 80mm axial cooling fan designed primarily for computer power supplies, 3D printers, and server chassis cooling.
  • B802512BH Part Number Breakdown:
    • 'B' Manufacturer / Line Represents the manufacturer's series designation or internal brushless DC identifier.
    • '80' Frame Width & Height 80mm width and height (square outer dimensions).
    • '25' Frame Thickness 25mm depth / thickness.
    • '12' Voltage Rating engineered for a 12V DC operating environment.
    • 'B' Bearing Type Ball Bearing (specifically Dual/Double Ball Bearings).
    • 'H' Speed Rating High Speed configuration within this specific fan architecture.
  • Pulled from ATX Computer Power Supplies
  • Serial Number Available or Sold:
    • SN 0100230 Used
    • SN 0100232 Used
