Features:

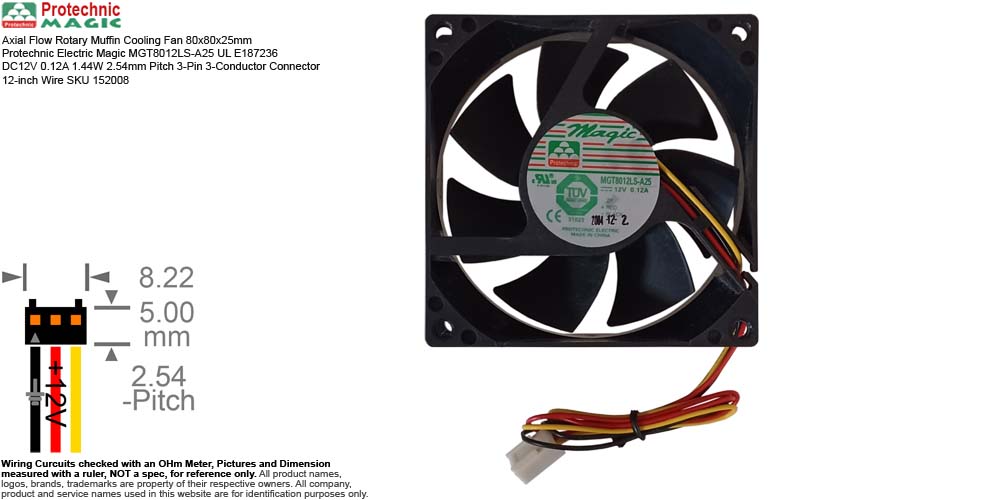

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Protechnic Electric Magic MGT8012LS-A25 UL E187236 DC12V 0.12A 1.44W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-inch Wire SKU 152008
• Manufacturer: Protechnic Electric
• Brand: or Distributor: Protechnic / Magic
• Model:
  • Electric Magic MGT8012LS-A25
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.15A 1.8W
  • Bearing: Sleeve Bearing
  • Speed: 2500 RPM
  • Air Flow: 25~30 CFM
  • Noise Level: 25~30 dB(A)
  • Material: PBT Polybutylene Terephthalate Fiberglass Reinforced UL94V-0 Rated
    • Frame Housing: PBT Polybutylene Terephthalate Fiberglass Reinforced UL94V-0 Rated
    • Impeller Blades: PBT Polybutylene Terephthalate Fiberglass Reinforced UL94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 12-inch
  • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
• Weight: 2.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Protechnic Magic MGT8012LS-A25 is a low-noise, energy-efficient 12V DC rotary axial muffin cooling fan. It is primarily found as an internal component inside desktop PC enclosures, audio equipment, and SFX computer power supplies
  • MGT8012LS-A25 Part Number Breakdown:
    • 'MG' Fan Series, Magic Series (Protechnic’s baseline DC brushless axial fan lineup)
    • 'T' Feature Set, Tachometer / Speed Sensor integrated (3-wire layout vs. standard 2-wire)
    • '80' Frame Size, 80mm width / 80mm height
    • '12' Voltage, 12 Volts DC operating voltage
    • 'L' Speed Grade, Low/Lite Speed (Balances static pressure with ultra-quiet performance)
    • 'S' Bearing Type, Sleeve Bearing mechanism
    • '-A25' Physical Housing25mm frame casing thickness/depth
  • Pulled from Enlight SFX Power Supply EN-8156903 SFX-1215A.
  • Serial Number Available or Sold:
    • SN 0111777 Used
    • SN 0111830 Used
