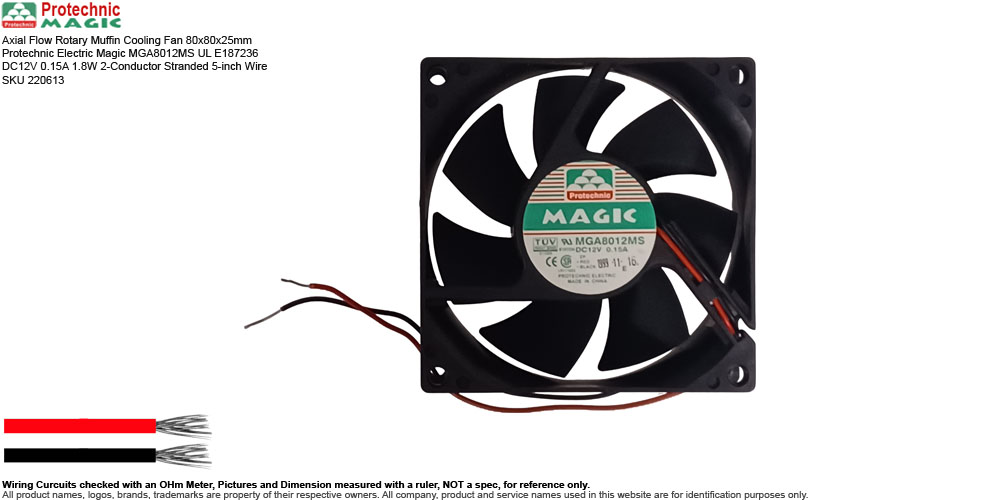

Axial
Flow Rotary Muffin Cooling Fan 80x80x25mm
Protechnic Electric Magic MGA8012MS UL E187236
DC12V 0.15A 1.8W 2-Conductor Stranded 5-inch Wire
SKU 220613
FN-8025-xxx
Features:
- Description: Axial
Flow Rotary Muffin Cooling Fan 80x80x25mm Protechnic Electric Magic
MGA8012MS UL E187236 DC12V 0.15A 1.8W 2-Conductor Stranded 5-inch
Wire SKU 220613
- Manufacturer:
Protechnic Electric
- Brand: or
Distributor:
Protechnic / Magic
- Model:
- Brief Spec.:
- Design: DC Brushless Fan
- Fan Size:
80x80x25mm
- Power Rating:
DC12V 0.15A
1.8W
- Bearing:
Sleeve Bearing
- Speed:
2500 RPM
- Air Flow:
32.1 CFM
- Noise Level:
30.4 dB(A)
- Material:
PBT
Polybutylene Terephthalate
Fiberglass Reinforced UL94V-0 Rated
-
Frame Housing:
PBT
Polybutylene Terephthalate
Fiberglass Reinforced UL94V-0 Rated
-
Impeller Blades:
PBT
Polybutylene Terephthalate
Fiberglass Reinforced UL94V-0 Rated
- Connection:
2-Conductor
Stranded Bare Wire
- Wire Length:
5-inch
- Photos are
representative of the model and specifications you will receive;
however, the exact factory batch codes, manufacturing dates, and
plant location stamps may differ across individual units.
- Weight: 2.9 oz
(estimated shipping weight 7 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
may have
signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Reused Box and Plastic Bag.
- For used with
or pulled from:
(for reference only)
-
The
MGA8012MS
manufactured by
Protechnic Electric
under the "Magic" brand nameis a standard
12V DC rotary axial muffin cooling fan.
It is widely used in desktop computer power supplies (PSUs), PC
cases, and office electronics.
- MGA8012MS Part Number Breakdown:
-
'MG'
Fan Series,
Magic Series
(Protechnic’s baseline DC brushless axial fan lineup)
- 'A' Frame
Profile,
Axial Flow
(Standard square casing shape)
-
'80'
Frame Size,
80mm
width / 80mm height
-
'12'
Voltage,
12 Volts DC
operating voltage
- 'M' Speed
Grade,
Medium Speed
(2,500 RPM, balancing noise and airflow, positioned below
"H" High-speed variants)
- 'S'
Bearing Type,
Sleeve Bearing
mechanism
- Pulled from
Enlight SFX Power Supply EN-8156903 SFX-1215A.
- Serial Number
Available or Sold:
- SN 0091131
Used
- SN 0091132
Used
- SN 0091131
Used
- SN 0093554
Used
- SN 0093555
Used
|
