Features:

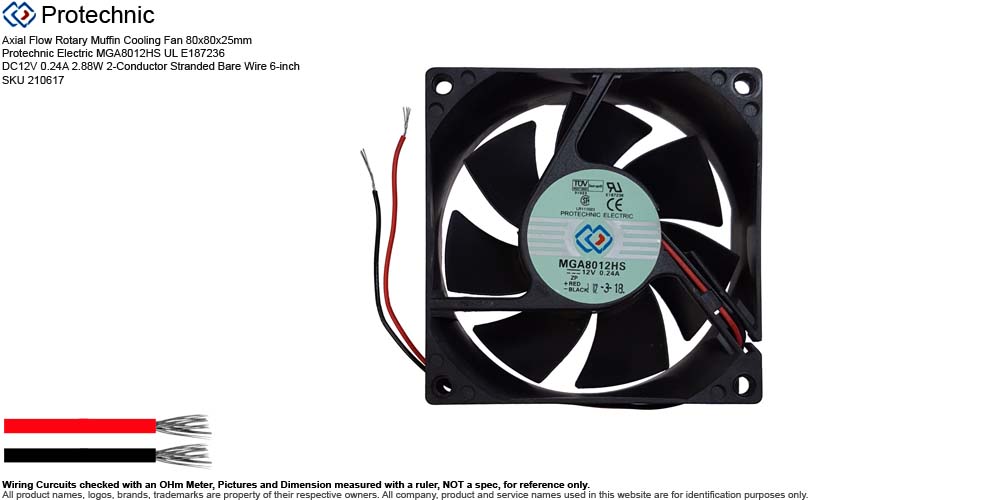

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Protechnic Electric MGA8012HS UL E187236 DC12V 0.24A 2.88W 2-Conductor Stranded Bare Wire 6-inch SKU 210617
• Manufacturer: Protechnic Electric
• Brand or Distributor: Protechnic
• Model:
  • MGA8012HS
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.24A 2.88W
  • Bearing: Sleeve Bearing
  • Speed: 2800 RPM
  • Air Flow: 38 CFM
  • Noise Level: 38 dB(A)
  • Material: PBT Polybutylene Terephthalate Fiberglass Reinforced UL94V-0
    • Frame Housing: PBT Plastic (Polybutylene Terephthalate, 15-30% fiberglass reinforced, UL94V-0 rated flame retardant)
    • Impeller Blades: PBT Plastic (7-blade configuration structurally molded to match the frame composition)
  • Connection: 2-Conductor Stranded Bare Wire
  • Wire Length: 6-inch
  • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
• Weight: 2.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Protechnic Electric (Magic) MGA8012HS is a 12V DC rotary axial cooling fan tailored for medium-to-high thermal loads in standard desktop computer components, server hardware, and audio amplifiers
  • MGA8012HS Part Number Breakdown:
    • 'MG' Fan Series, Magic Series (Protechnic’s baseline DC brushless axial fan lineup)
    • 'A' Frame Profile, Axial Flow (Standard square casing shape)
    • '80' Frame Size, 80mm width / 80mm height
    • '12' Voltage, 12 Volts DC operating voltage
    • 'H' Speed GradeHigh Speed (2,800 RPM performance tier)
    • 'S' Bearing Type, Sleeve Bearing mechanism
  • Pulled from Enlight SFX Power Supply EN-8156903 SFX-1215A.
  • Serial Number Available or Sold:
    • SN 0113206 Used
