Features:

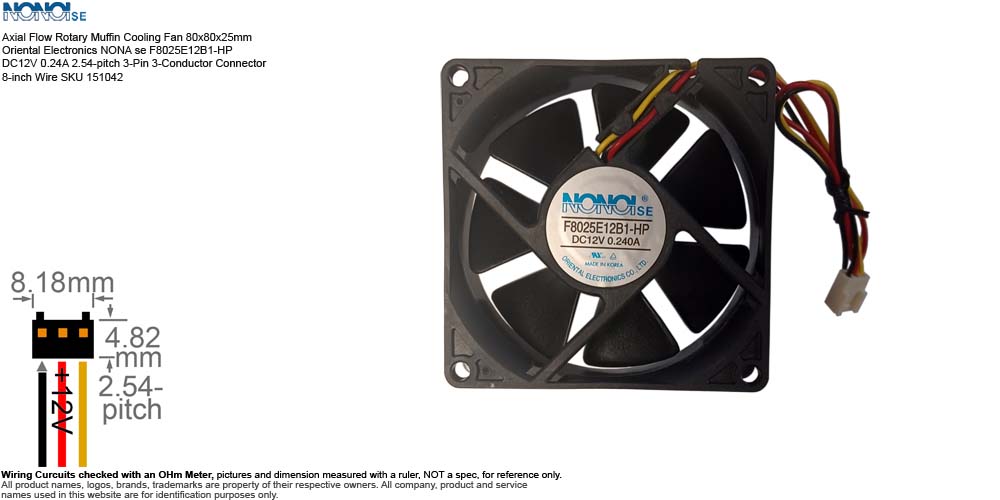

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Oriental Electronics NONA se F8025E12B1-HP DC12V 0.24A 2.88W 2.54mm Pitch 3-Pin 3-Conductor Connector 8inch Wire SKU 151042
• Manufacturer: Oriental Electronics
• Brand: or Distributor: NONA se
• Model:
  • NONA se F8025E12B1-HP
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.24A 2.88W
  • Bearing: Dual Ball Bearing
  • Speed: 3600 RPM
  • Air Flow: 46 CFM
  • Noise Level: 35 dB(A)
  • Material: PBT Plastic (Polybutylene Terephthalate, UL94V-0 rated)
    • Frame Housing: PBT Plastic (Polybutylene Terephthalate, UL94V-0 rated)
    • Impeller Blades: PBT Plastic (Polybutylene Terephthalate, UL94V-0 rated)
  • Connector: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 8-inch
  • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
• Weight: 2.9 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The NONA se F8025E12B1-HP (also sold under brands like Mechatronics and NoNoise) is a DC 12V rotary axial muffin fan primarily used for server and computer hardware cooling
  • F8025E12B1-HP Part Number Breakdown:
    • 'F' Frame Design (Standard Square Tube Axial DC Fan)
    • '80' 80mm width / height
    • '25' 25mm depth/thickness
    • 'E' Extra High Speed (corresponds to 3600 RPM)
    • '12' 12 Volts DC nominal operation
    • 'B' Dual Ball Bearing mechanism
    • '1' Single-phase or Standard DC Brushless design
    • '-HP' High Performance / Custom Tailored designation (specifies the proprietary 8-inch wire lead terminating in an ATX 3-pin connector used for server hardware).
  • Pulled from retired PC.
  • Serial Number Available or Sold:
    • SN 1186E Used
