• Nidec 80x80x25mm BETA V TA300DC Series Specification

Features:

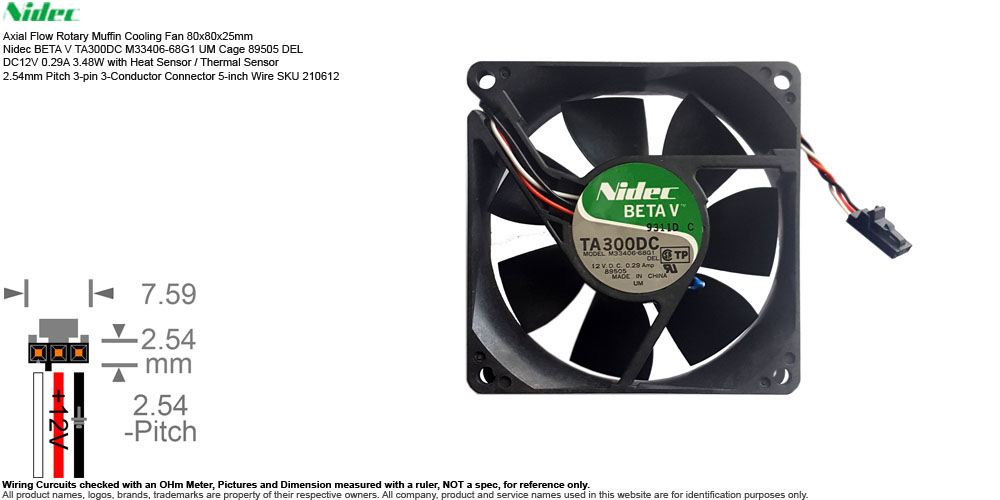

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Nidec BETA V TA300DC M33406-68G1 UM Cage 89505 DEL DC12V 0.29A 3.48W with Heat Sensor / Thermal Sensor 2.54mm Pitch 3-pin 3-Conductor Connector 5-inch Wire SKU 210612
• Manufacturer: Nidec Corporation
• Brand: or Distributor: Nidec / Dell
• Model:
  • Nidec BETA V TA300DC M33406-68G1 UM
  • Cage Code 89505
  • Dell 93216 Compatible
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.29A 3.48W with Heat Sensor / Thermal Sensor
  • Bearing: Dual Ball Bearing
  • Speed: 3200 RPM
  • Air Flow: 43 CFM
  • Noise Level: 35.8 dB(A)
  • Material: Glass-fiber reinforced PBT Plastic UL94V-0 rated
    • Frame Housing: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
    • Impeller Blades: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
  • Connector: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 5-inch
• Weight: 3.1 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), may have (or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • BETA V TA300DC M33406-68G1 UM is a high-performance 80mm x 80mm x 25mm industrial DC axial fan most famously used as the custom hot-swappable enterprise cooling fan assembly for Cisco 2800 / 3800 series routers.
  • BETA V TA300DC M33406-68G1 UM 89505 DEL 9311D C Part Number Breakdown:
    • 'BETA V' The overall structural generation name of Nidec’s high-performance industrial DC axial fan family
    • 'TA' Tube Axial Fan Layout.
    • '300' = 3.00-inch class physical framing (adapted to standard 80mm sizing)
    • 'DC' = Direct Current operation.
    • 'M' The housing material and flange configuration. M indicates an Advanced Thermoplastic housing featuring an Open Flange framework (as opposed to a C designation, which represents a closed flange.
    • '33406' The baseline electrical and performance matrix index. This specific number hardcodes the internal stator winding configuration, the 12V DC operating voltage, 0.29 Amp power draw, and 3,200 RPM profile
    • '-68G1' The wiring, connection, and embedded sub-feature suffix. This denotes the inclusion of an internal thermal pulse speed sensor and a customized Dell legacy 3-pin motherboard connector plug
    • 'UM' is an internal regulatory safety marker indicating that the fan features Impedance Protection (alternatively referred to in some Nidec factory schemas as Under-writers Laboratories Motor protection).
    • '89505' is a military and defense procurement identifier known as a CAGE Code (Commercial and Government Entity Code), Specifically, 89505 is the unique, federally assigned tracking number for Nidec Corporation (specifically registered under its legacy corporate branch, Torin Engineered Blowers / Nidec America)
    • 'DEL' stands for Dell, it is a custom vendor designator showing that this specific batch of fans was manufactured by Nidec under a direct contract to be built into Dell desktop computers and servers. While the foundation of the fan is a standard Nidec Beta V TA300DC unit, the "DEL" or "-DEL" suffix appended to the part number indicates a proprietary modification made specifically to fit Dell's engineering standards.
    • '9311' Indicates the year of manufacture 1993, and the 11th week.
    • 'D' Typically denotes the specific production plant line.
    • 'C' Often represents a quality control code, country of origin identifier, or the compliance/certification standard under which the batch was processed.
  • Serial Number Available or Sold:
    • SN 0083519 Used
