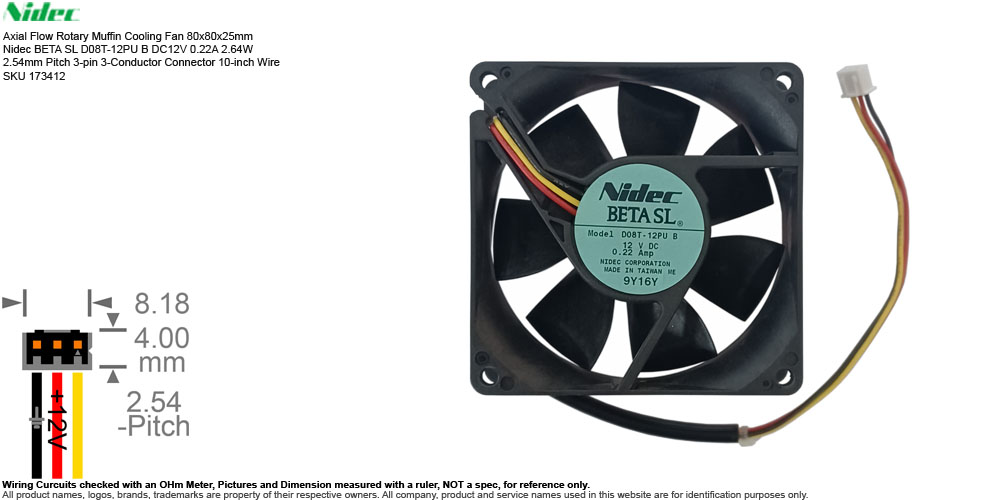

Axial Flow Rotary Muffin Cooling Fan 80x80x25mm
Nidec BETA SL D08T-12PU DC12V 0.22A 2.64W
2.54mm Pitch 3-pin 3-Conductor Connector 10-inch Wire
SKU 173412
FN-8025-xxx

Link(s):

Features:

  • Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Nidec BETA SL D08T-12PU DC12V 0.22A 2.64W 2.54mm Pitch 3-pin 3-Conductor Connector 10-inch Wire SKU 173412
  • Manufacturer: Nidec Corporation
  • Brand: or Distributor: Nidec
  • Model:
    • Nidec BETA SL D08T-12PU B
  • Brief Spec.:
    • Design: DC Brushless Fan
    • Fan Size: 80x80x25mm
    • Power Rating: DC12V 0.22A 2.64W
    • Bearing: Dual Ball Bearing
    • Speed: 3250~3400 RPM
    • Air Flow: 44~44.2 CFM
    • Noise Level: 33.5~34 dB(A)
    • Material: Glass-fiber reinforced PBT Plastic UL94V-0 rated
      • Frame Housing: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
      • Impeller Blades: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
    • Connector: 2.54mm Pitch 4-Pin 3-Conductor Connector
    • Wire Length: 1.5-inch
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
  • Weight: 3 oz (estimated shipping weight 7 oz)
  • Condition: (Subject to Availability)
    • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
    • SKU ______N - New
    • SKU ______B - Bulk New, seller repackaged.
    • SKU ______E - Excess Inventory, not been used, may have signs of age.
    • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
    • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
    • SKU ______R - Refurbished to working condition.
    • SKU ______U - Used, may have signs of cosmetic wear.
  • Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
  • For used with or pulled from: (for reference only)
    • Nidec BETA SL D08T-12PU A is a is an enterprise-grade, high-reliability cooling fan originally designed for continuous 24/7 duty cycles. Manufactured during the early 2000s server boom, it was built specifically to handle the dense thermal environments of network infrastructure, enterprise servers, industrial controls, medical equipment.
    • Nidec BETA SL D08T-12PU A 4402Y AA ME Part Number Breakdown:
      • 'BETA SL' Product Line Series – Nidec's specialized segment for high-efficiency, space-saving axial DC muffin fans.
      • 'D' Power Type – Stands for Direct Current (DC) power input.
      • '08' Frame Size – Specifies an 80mm width and height profile.
      • 'T' Thickness – Defines the standard 25mm structural depth.
      • '12' Voltage – Rated for standard 12-Volt DC systems.
      • 'PU' Internal Sub-Spec – Code for premium high-speed performance output paired with enterprise ball bearings.
      • 'B' Revision Generation – Denotes the second major design iteration, which typically updates internal circuitry layout or wire terminal configurations.
      • The exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
        • '9Y16Y' Factory Tracking Array – Internal code capturing the automated production line, facility room, assembly work shift, and regional plant identifier where this exact fan was completed.
    • Pulled from Supermicro 2U SuperServer, this is the "B" at the end signifies it is the second design revision (succeeding the "A" revision), features updated wiring harness configurations or internal component tweaks
    • Serial Number Available or Sold:
      • Factory Tracking Code 0309Y
        • SN 0083517 Used
      • Factory Tracking Code 9Y16Y
        • SN 0090472 Used
