Link(s):

• Nidec 80x80x25mm BETA V TA300DC Series Specification

Features:

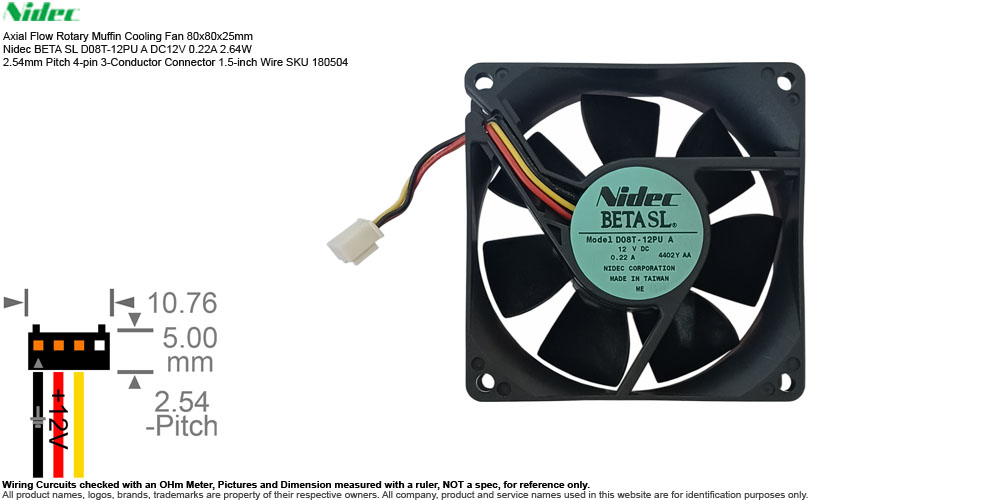

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Nidec BETA SL D08T-12PU A Supermicro FAN-0044 UPC 672042610518 DC12V 0.22A 2.64W 2.54mm Pitch 4-pin 3-Conductor Connector 1.5-inch Wire SKU 180504
• Manufacturer: Nidec Corporation
• Brand: or Distributor: Nidec / Supermicro
• Model:
  • Nidec BETA SL D08T-12PU A
  • Supermicro FAN-0044
  • UPC 672042610518
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.22A 2.64W
  • Bearing: Dual Ball Bearing
  • Speed: 3250~3400 RPM
  • Air Flow: 44~44.2 CFM
  • Noise Level: 33.5~34 dB(A)
  • Material: Glass-fiber reinforced PBT Plastic UL94V-0 rated
    • Frame Housing: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
    • Impeller Blades: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
  • Connector: 2.54mm Pitch 4-Pin 3-Conductor Connector
  • Wire Length: 1.5-inch
• Weight: 3 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Nidec BETA SL D08T-12PU A is a is an enterprise-grade, high-reliability cooling fan originally designed for continuous 24/7 duty cycles. Manufactured during the early 2000s server boom, it was built specifically to handle the dense thermal environments of network infrastructure, enterprise servers, industrial controls, medical equipment.
  • Nidec BETA SL D08T-12PU A 4402Y AA ME Part Number Breakdown:
    • 'BETA SL' Product Line Series – Nidec's specialized segment for high-efficiency, space-saving axial DC muffin fans.
    • 'D' Power Type – Stands for Direct Current (DC) power input.
    • '08' Frame Size – Specifies an 80mm width and height profile.
    • 'T' Thickness – Defines the standard 25mm structural depth.
    • '12' Voltage – Rated for standard 12-Volt DC systems.
    • 'PU' Internal Sub-Spec – Code for premium high-speed performance output paired with enterprise ball bearings.
    • 'A' Revision Generation – Denotes the original, baseline factory hardware configuration.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '44' Week Built – Manufactured during the 44th week of the calendar year (late October/early November).
      • '02' Year Built – Manufactured in the year 2002.
      • 'Y' Factory Plant Assembly – Specific line indicator code within the regional facility.
      • 'AA' Internal Batch Code – Quality assurance tracking number identifying the work shift and production lot.
      • 'ME' Manufacturing Location – Signifies production at Nidec's domestic high-precision industrial facilities.
  • Pulled from Supermicro 2U SuperServer 6023-P-8R with 05-01-820805 Fan Bracket on 01-01-820803 Fan Bridge.
  • Serial Number Available or Sold:
    • SN 0110996 Used
    • SN 0110997 Used
    • SN 0110998 Used
    • SN 0110999 Used
    • SN 0111000 Used
    • SN 0111001 Used
    • SN 0111002 Used
    • SN 0111003 Used
    • SN 0111004 Used
    • SN 0111005 Used
    • SN 0111006 Used
    • SN 0111007 Used
