Features:

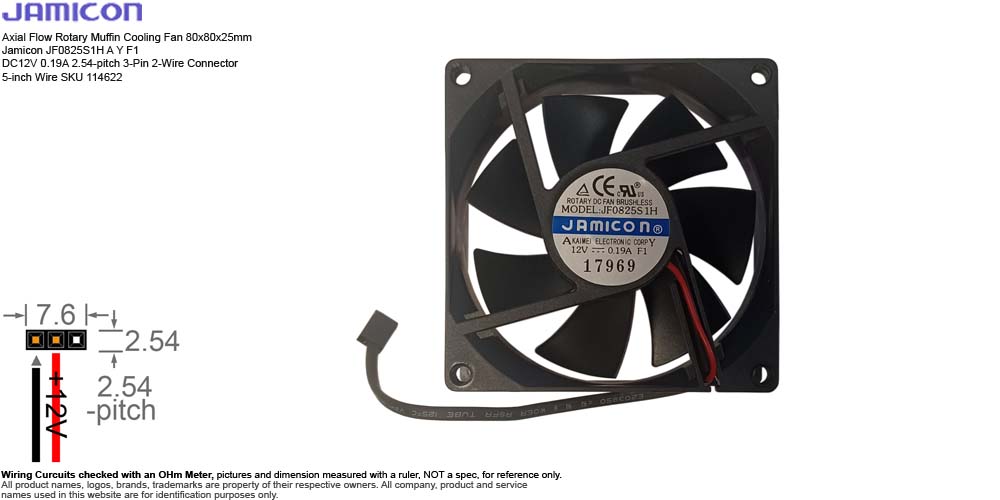

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Jamicon JF0825S1H A Y F1 KaiMei Electronic Corp. DC12V 0.19A 2.28W 2.54mm Pitch 3-pin 2-Conductor Connector 5-inch Wire SKU 114622
• Manufacturer: KaiMei Electronic Corp.
• Brand Name or Distributor: Jamicon / KaiMei
• Model: (and / or Compatible / Equivalent)
  • Jamicon JF0825S1H A Y F1
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.19A 2.28W
  • Bearing: Sleeve Bearing
  • Speed: 3000 RPM +/- 10%
  • Air Flow: 38.74~39.2 CFM
  • Noise Level: 31 ~ 33.2 dBA
  • Material: PBT plastic (Thermoplastic PBT meet UL 94V-0 flammability standards)
    • Frame Housing: PBT plastic (Thermoplastic PBT meet UL 94V-0 flammability standards)
    • Impeller Blades: PBT plastic (Thermoplastic PBT meet UL 94V-0 flammability standards)
  • Connection: 2.54mm Pitch 3-pin 2-Conductor Connector
  • Wire Length: 5-inch
• Weight: 2.5 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), may have (or with) signs of cosmetic wear.
• Packaging: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For use with or saved from: (for reference only)
  • Jamicon JF0825S1H A Y F1 is an industrial-grade, high-airflow cooling fan engineered primarily for mid-tier chassis ventilation, power supplies, and automated control panels. It balances localized high static pressure with smart safety monitoring tools to keep hardware from overheating. Primarily used for Server and Workstation Casing, Power Supply Units (PSUs), Control Panel Cooling, Networking Hardware, featuring Integrated Lock Rotor Alarm (Type A Function), Electrical Auto-Restart Protection, UL 94V-0 Rated Casing & Impeller, High-Volume Air Output.
  • Jamicon JF0825S1H A Y F1
    • 'JF' Axial Fan Version 1 Brushless DC motor configuration
    • '08' 80mm Outer frame width and height (80 × 80 mm)
    • '25' 25mm Total depth/thickness of the fan casing
    • 'S' Traditional oil-impregnated sintered sleeve bearing
    • '1' Operates on a standard 12V DC line
    • 'H' High-Speed Runs at 3000 RPM yielding ~39 CFM
    • 'A' Alarm Signal OutputIncludes Auto-Restart safety protection
    • 'Y' Custom ModificationFactory-specific physical build or wiring tweak
    • 'F1' Manufacturing BatchInternal control code for standard sub-series
  • Serial Number Available or Sold:
    • SN 17969 Used
